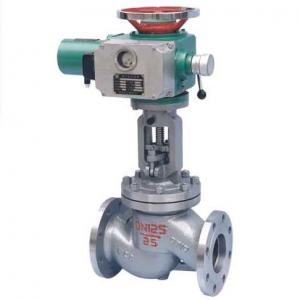

J941H Electric glove valve Product introduction

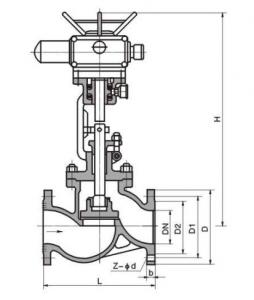

J941H Electric glove valve Main dimension
|
1.6MPa |
DN |
L |
D |
D1 |
b |
n-Φd |
Electric |
L1 |
H |
D0 |
|
RF 16C |
50 |
230 |
160 |
125 |
16 |
4-Φ18 |
DZW10 |
590 |
645 |
365 |
|
65 |
290 |
180 |
145 |
18 |
4-Φ18 |
DZW10 |
590 |
690 |
365 |
|
|
80 |
310 |
195 |
160 |
20 |
8-Φ18 |
DZW20 |
590 |
715 |
365 |
|
|
100 |
350 |
215 |
180 |
20 |
8-Φ18 |
DZW20 |
590 |
770 |
365 |
|
|
125 |
400 |
245 |
210 |
22 |
8-Φ18 |
DZW30 |
590 |
780 |
365 |
|
|
150 |
480 |
280 |
240 |
24 |
8-Φ23 |
DZW45 |
590 |
875 |
365 |
|
|
200 |
600 |
335 |
295 |
26 |
12-Φ23 |
DZW60 |
810 |
967 |
470 |
|
|
250 |
650 |
405 |
335 |
30 |
12-Φ25 |
DZW90 |
810 |
1153 |
470 |
|
|
300 |
750 |
460 |
410 |
30 |
12-Φ25 |
DZW120 |
830 |
1292 |
550 |
|
|
2.5MPa |
50 |
230 |
160 |
125 |
20 |
4-Φ18 |
DZW10 |
590 |
645 |
365 |
|
25C |
65 |
290 |
180 |
145 |
22 |
8-Φ18 |
DZW10 |
290 |
690 |
365 |
|
80 |
310 |
195 |
160 |
22 |
8-Φ18 |
DZW20 |
590 |
715 |
365 |
|
|
100 |
350 |
230 |
190 |
24 |
8-Φ23 |
DZW20 |
590 |
770 |
365 |
|
|
125 |
400 |
270 |
220 |
28 |
8-Φ25 |
DZW30 |
590 |
780 |
365 |
|
|
150 |
480 |
300 |
250 |
30 |
8-Φ25 |
DZW45 |
810 |
875 |
470 |
|
|
200 |
600 |
360 |
310 |
34 |
12-Φ25 |
DZW60 |
810 |
967 |
470 |
|
|
250 |
650 |
425 |
370 |
36 |
12-Φ30 |
DZW90 |
830 |
1153 |
550 |
|
|
300 |
750 |
485 |
430 |
40 |
12-Φ30 |
DZW120 |
830 |
1292 |
550 |
J941H Electric glove valve Product order instruction
J941H Electric glove valve Related Products
