BJ41W Heat insulation globe valve

BJ41W Heat insulation globe valveBJ41W Heat insulation globe valve
BJ41W Heat insulation globe valve

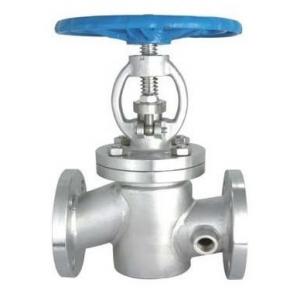

BJ41W Heat insulation globe valve Product introduction

BJ41W Heat insulation globe valve

BJ41W Heat insulation globe valve Technical parameters


PN (MPa)
Shell test
Water seal test
Air seal test
Temperature
Jacket pressure(MPa)
1.5* PN (MPa)
1.1* PN (MPa)
0.5-0.7 (MPa)
1.6
2.4
1.8
0.6 MPa
≤350
≤1.0
2.5
3.8
2.8
≤350
≤1.0
4.0
6.0
4.4
≤350
≤1.0
6.4
9.6
7.1
≤350
≤1.0
10.0
15.0
11.0
≤350
≤1.0

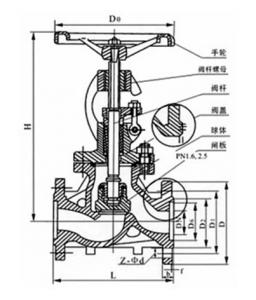

BJ41W Heat insulation globe valve Main dimension

Model
    DN
Dimension
L
D
D1
D2
B-f
Z-Φd
H
Do
2-G

W

P
BJ41

-16
R

H

C

15
130
95
65
45
16-2
4-14
170
170
3/8
20
150
105
75
55
16-2
4-14
190
190
3/8
25
160
115
85
65
16-2
4-14
205
205
3/8
32
180
135
100
78
18-2
4-18
270
270
1/2
40
200
145
110
85
18-3
4-18
310
310
1/2
50
230
160
125
100
18-3
4-18
358
358
1/2
65
290
180
145
120
18-3
4-18
373
373
1/2
80
310
195
160
135
20-3
8-18
435
435
1/2
100
350
215
180
155
20-3
8-18
500
500
1/2
125
400
245
210
185
22-3
8-18
614
614
1/2
150
480
280
240
210
24-3
8-23
674
674
1/2
200
600
335
295
264
26-3
12-23
818
818
1/2
250
730
405
355
320
30-3
12-25
949
969
1/2

BJ41W不锈钢截止阀2.5MPa主要连接尺寸


型号
公称通径DNmm
尺寸
L
D
D1
D2
B-f
Z-Φd
H
Do
2-G

W

P
BJ41

-25
R

H

C

15
130
95
65
45
16-2
4-14
233
120
3/8
20
150
105
75
55
16-2
4-14
275
140
3/8
25
160
115
85
65
16-2
4-14
285
160
3/8
32
180
135
100
78
18-2
4-18
302
180
1/2
40
200
145
110
85
18-3
4-18
355
200
1/2
50
230
160
125
100
20-3
4-18
362
240
1/2
65
290
180
145
120
22-3
8-18
400
280
1/2
80
310
195
160
135
22-3
8-18
430
320
1/2
100
350
230
190
160
24-3
8-18
465
360
1/2
125
400
270
220
188
28-3
8-23
550
400
1/2
150
480
300
250
218
30-3
8-25
700
400
1/2
200
600
360
310
278
34-3
12-25
780
450
1/2
250
730
425
370
335
36-3
12-30
900
550
1/2
