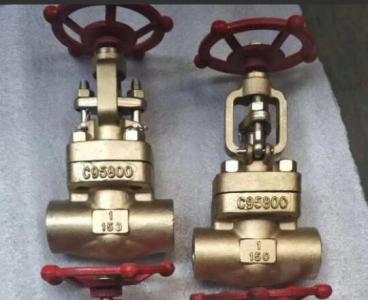

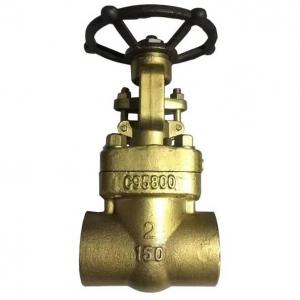

C95800 Sea water marine globe valve

C95800 Sea water marine globe valveC95800 Sea water marine globe valve
C95800 Sea water marine globe valve

C95800 Sea water marine globe valve Product introduction

 China Sea water globe valve, marine globe valve, aluminum bronze globe valve manufacturer, factory and supplier for C95500 C958000 seawater valve. C95800 Sea water marine globe valve is good performance in seawater and far cheaper than duplex, super duplex, and monel for many seawater applications, especially in low-pressure applications. Its major drawback is its low tolerance to heat.

C95800 Sea water marine globe valve offers superior saltwater corrosion resistance. It also is resistant to cavitation and erosion. Along with the advantage of pressure tightness, this high-strength alloy is excellent for welding and is available in many forms at a lower cost to you. So C95800 Sea water marine globe valve is typically used for shipbuilding with seawater or fire water application.

C95800 Sea water marine globe valve specification

Product Globe valve
Nominal diameter NPS 2”~24” DN50~DN600
Design temp.  -29℃ ~ 593℃
Design pressure class 150 ~ 2500 PN 16~PN420
Material
ASTM B 148 C95800, C95500
Other optional material:
A216 WCB, WCC, A217 WC6, WC9, C5, C12A, A352 LCB, LCC, A351 CF8, CF8M, CF3M, CF8C, CN3MN, CK3MCUN, CN7M,
A890 4A(CD3MN), 5A(CE3MN), 6A(CD3MWCuN),
Design standard BS 1873, ASME B16.34 DIN 3356
Face to Face ASME B16.10 EN558 series
Connection end ASME B16.5, ASME B16.25 EN1092 series
Test standard API 598, ISO 5208 EN12266-1
Operation Hand wheel, bevel gear, electric, pneumatic
Application electric power, petroleum refining, petrochemical engineering, offshore oil,
tap water engineering in urban construction, chemical engineering

C95800 Sea water marine globe valve feature

1. Cost-effective (cheaper than the exotic alternatives);

2. Long-lasting (comparable in performance on general corrosion, pitting, and cavitation to super duplex alloys and significantly better than the standard alloys), and

3. A good valve material (does not gall, has excellent anti-fouling properties, and is a good thermal conductor), makes it an excellent choice for valves in seawater service

C95800 Sea water marine globe valve Related Products

Previous:C95800 Aluminum Bronze globe valve

Next:High Pressure Steam Globe Valve
