J965Y Electric Y type globe valve

J965Y Electric Y type globe valveJ965Y Electric Y type globe valve
J965Y Electric Y type globe valve

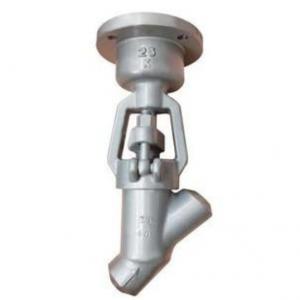

J965Y Electric Y type globe valve Product introduction

 J965Y Electric Y type globe valve is used for high temperature and high pressure water,steam,oil products and super-heated steam.,etc,J965Y Electric Y type globe valve is installed on the main water supply pipeline of the boiler and used as an opening and closing device. J965Y Electric Y type globe valve must be in a fully open or fully closed state and can not be used as a regulating valve. J965Y Electric Y type globe valve is Y-shaped and the center line of the valve stem and the center line of the branch pipe are 45 degrees JJ965Y Electric Y type globe valve is widely used for thermal power plant,petrochemical industry,metallurgy and other industrial sectors.

Model: J965Y-100, 200, 250,320, J965Y-P54/100V, P54/140V, P54/170V

Size: DN10-DN100

Pressure: PN10-PN320

J965Y Electric Y type globe valve Max Temperature: 425 Deg C for Carbon Steel Material, 540 Deg C for WC6 Material, 570 Deg C for WC9 Material

J965Y Electric Y type globe valve feature:

  1. The central connection adopt pressure self-tightening structure.
  2. The disc and seat are welding with hard alloy.
  3. High temperature creep resistance design.
  4. The material of stem is precipitation hardening stainless steel by nitriding.
  5. Operating device can be manual,gear,bevel gear and electric actuator.

J965Y Electric Y type globe valve Related Products
