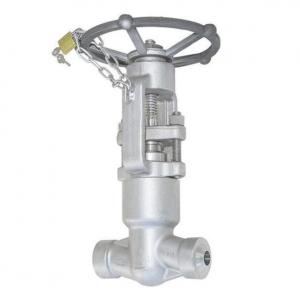

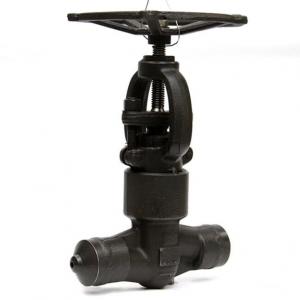

Pressure seal bonnet globe valve Class 1500 specification

OS&Y,Rising stem,Plug Disc
Pressure sealing Bonnet (PSB),Threaded or welded seating
Design and Manufacture:BS1873, ASME B16.34
Face to face Dimensions (end to end): ASME B16.10
Flanged Ends Dimensions: ASME B16.5
Butt welded end Dimensions: ASME B16.25
Test and inspection Standard: API598
Manufacturing to NACE MR-01-75 on request.

Pressure seal bonnet globe valve Class 1500 design feature:
Globe valve Type: Through way type , Y type Globe valve, and Angle Type globe valve, OS&Y, Rising Stem .
Disc: Plug type disc, regulating disc(throttling disc) ,regular disc,
Bonnet : Pressure seal bonnet (PSB)
Sear Ring:Rrenewable seat ring seat ring , welded seat ring or Integral Seat
Type of connection:Raised Face flange (RF) , RING TYPE JOINT FLANGE(RTJ), Butt welding ends (BW) ASME B16.25
Operated type: Hand wheel , Gear Operated, Pneumatic Operated, Electric Operated, Impact Hand wheel Operated
or Bare stem with ISO5210 top mounting pad for actuator etc.


PPressure seal bonnet globe valve Class 1500 Material:
Carbon Steel: A216 WCB,ASTM A105
Stainless Steel: A351 CF8(F304),CF8M(F316),CF3(F304L),CF3M(F316L),CF8C(F347),F321,F321H,CK20
Alloy Steel:Monel 400, monel k500, alloy20,904L,CN7M, Inconel, Hastelloy® B&C
Duplex Stainless Steel: A351 CN7M(B473), CD4MCu(F50),CK3MCuN(F44),CG8M,A890-1A,4A,5A,6A, A182 F44,F50,F51,F53,F310
Low temperature steel: A352 LCB,LCC,LCA,LC3,A350 LF2,LF3
High temperature steel:A217 WC6,WC9,WC5,WC11,C5,C12,C12A,A182 F22,F11 ,F5,F9,
Bronze, Nickel aluminum bronze(NAB) Gunmetal: B148 C95500,C95800,C95400,B62, C83600,B61,B62 C92200, B150 C63200
DIN Material: GS-C25,1.0619 1.4408, 1.4308,C22.8
