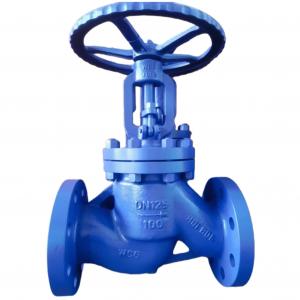

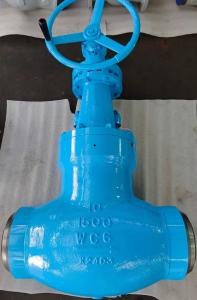

WC6 WC9 Alloy Steel High Temp Globe Valve manufacturer, factory and supplier. WC6 WC9 Alloy Steel High Temp Globe Valve is installed in steam turbine drainage, feed water drainage, heater drainage, boiler drainage, superheater drainage, air exhaust, water wall combined tank drainage, wall drainage and other pipes and containers, as the opening and closing device. WC6 WC9 Alloy Steel High Temp Globe Valve changed the traditional globe valve structure form, using the high pressure differential throttling sleeve structure. With strong anti-erosion, easy operation, long service life, valve parts can be disassembled, low maintenance costs.
WC6 WC9 Alloy Steel High Temp Globe Valve specification:
Design standard: BS 1873.
Body material: WC6 WC9.
Nominal diameter: 1/2"~24" (DN15~DN600).
Pressure: 150LB~2500 LB (PN420).
End connection: RF,RTJ,BW.
Face to face: ANSI B16.10.
Working temperature: -29℃~+570℃.
Test and inspection: API 598.
WC6 WC9 Alloy Steel High Temp Globe Valve Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal diameter: 1/2"~24" (DN15~DN600).
End connection: BW, Flanged.
Pressure range: 150 LBs~2500 LBs(PN16~PN420).
Operation: Handwheel, Gearbox, Electric, Pneumatic.
Working temperature: -29℃~+570℃.
Features: One sealing face is designed one the body and disc, for large sizes valves will be designed with main disc and vice disc, and medium flow from up disc to down disc. And back seat sealing structure be designed. Can be designed with by-pass valve.
