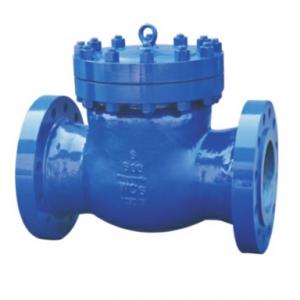

Cast steel check valve 300Lb Product introduction
Cast steel check valve 300Lb Technical parameters
Cast steel check valve 300Lb Main part material

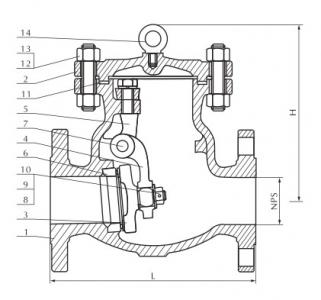

Cast steel check valve 300Lb Main dimension
| NPS | DN | Class 300Lb | WT(Kg) | ||||||
| in | mm | L | D | D1 | D2 | b | Z-Φd | H | |
| 2" | 50 | 267 | 165 | 127 | 92 | 22.5 | 8-Φ19 | 179.5 | 20 |
| 21/2" | 65 | 292 | 190 | 150 | 105 | 25 | 8-Φ22 | 190 | 24 |
| 3" | 80 | 318 | 210 | 168 | 127 | 29.0 | 8-Φ22.5 | 212.4 | 40 |
| 4" | 100 | 356 | 254 | 200 | 157 | 32.0 | 8-Φ22.5 | 246 | 51 |
| 6" | 150 | 445 | 317.5 | 269.7 | 216 | 37.0 | 12-Φ22.5 | 292 | 90 |
| 8" | 200 | 533 | 381 | 330 | 270 | 41.5 | 12-Φ25.5 | 328 | 175 |
| 10" | 250 | 622 | 444.5 | 387 | 324 | 48.0 | 16-Φ28.5 | 378.6 | 210 |
| 12" | 300 | 711 | 521 | 451 | 381 | 51.0 | 16-Φ32 | 420 | 286 |
| 14" | 350 | 838 | 584 | 514 | 54 | 54 | 20-Φ32 | 470 | 400 |
| 16" | 400 | 864 | 648 | 572 | 57 | 57 | 20-Φ35 | 530 | 550 |
| 18" | 450 | 978 | 711 | 629 | 60 | 60 | 24-Φ35 | 584 | 700 |
| 20" | 500 | 1016 | 775 | 686 | 64 | 64 | 24-Φ35 | 610 | 860 |
| 24" | 600 | 1346 | 914 | 813 | 70 | 70 | 24-Φ41 | 860 | 1931 |
