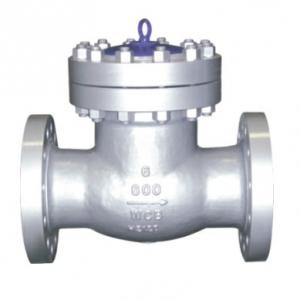

Cast steel check valve 600Lb Product introduction
Cast steel check valve 600Lb Technical parameters
Cast steel check valve 600Lb Main part material

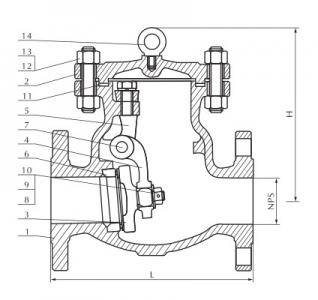

Cast steel check valve 600Lb Main dimension
| NPS | DN | Class 600Lb | WT(Kg) | ||||||
| in | mm | L | D | D1 | D2 | b | Z-Φd | H | |
| 2" | 50 | 292 | 165 | 127 | 92 | 25 | 8-Φ19 | 203 | 34 |
| 21/2" | 65 | 330 | 190 | 150 | 105 | 29 | 8-Φ22 | 229 | 45 |
| 3" | 80 | 356 | 210 | 168 | 127 | 32 | 8-Φ22 | 235 | 63 |
| 4" | 100 | 432 | 273 | 216 | 157 | 38 | 8-Φ25 | 286 | 114 |
| 6" | 150 | 559 | 356 | 292 | 216 | 48 | 8-Φ29 | 330 | 207 |
| 8" | 200 | 660 | 419 | 349 | 270 | 56 | 12-Φ29 | 381 | 387 |
| 10" | 250 | 787 | 508 | 432 | 324 | 64 | 12-Φ32 | 457 | 580 |
| 12" | 300 | 838 | 559 | 489 | 381 | 67 | 16-Φ35 | 584 | 778 |
| 14" | 350 | 889 | 603 | 527 | 413 | 70 | 20-Φ38 | 635 | 9869 |
| 16" | 400 | 991 | 686 | 603 | 470 | 76 | 20-Φ41 | 684 | 1380 |
Cast steel check valve 600Lb Related Products
