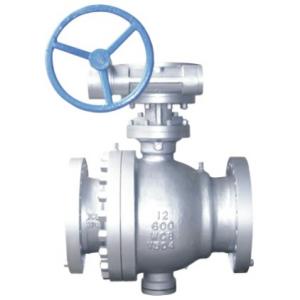

Cast steel trunnion mounted ball valve 600lb

Cast steel trunnion mounted ball valve 600lb Product introduction

Cast steel trunnion mounted ball valve 600lb Technical parameters

Nominal pressure : Class 600lb
Working temp.:≤800℃
Nominal diameter: 2''- 36''
Service: Water,oil,gas,steam
Trunnion mounted cast steel ball valve 600lb applicable standard :API 608/ASME B16.34
Trunnion mounted cast steel ball valve 600lb fire durable:API 607
Trunnion mounted cast steel ball valve 600lb anti static :API 608
Trunnion mounted cast steel ball valve 600lb face to face standard: ASME B16.10
Trunnion mounted cast steel ball valve 600lb flange end standard: ASME B16.5
Trunnion mounted cast steel ball valve 600lb inspection and test: API 598

Trunnion mounted cast steel ball valve 600lb design description:
Full port design
BB, Bolted bonnet ,split body
Three piece body for 12’’ & above
Blow-out proof stem
Fire durable construction
Anti static device
Stopper device
ISO 5211 Mounting pad
Flange or butt welding ends
Available with WG operator

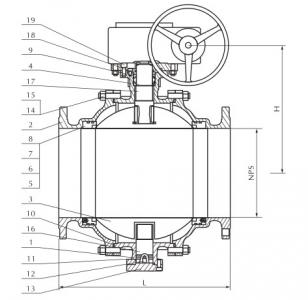

Cast steel trunnion mounted ball valve 600lb Main part material

No	Part name	ASTM Material
No	Part name	Carbon steel	18Cr-9Ni-2Mo	Carbon steel
1	Body	A216-WCB	A351-CF8M	A352-LCB
2	Bonnet	A216-WCB	A351-CF8M	A352-LCB
3	Ball	A182-F304	A182-F316	A182-F304
4	Stem	A276-304	A276-316	A276-304
5	Seat	A105+ENP	A182-F316	A350-LF2+ENP
6	Stem insert	Class filled PTFE
7	Seat spring	A313-304	Inconel X-750	A313-304
8	Seat O-ring	NBR	Vition	Vition
9	Stem O-ring	NBR	Vition	Vition
10	Bonnet gasket	Graphite+304	Graphite+316	Graphite+304
11	Bonnet O-ring	NBR	Vition	Vition
12	Antistatic spring	A313-304	A313-316	A313-304
13	Grounding plunger	A216-WCB	A182-F316	A182-F304
14	Bonnet stud	A193-B7	A193-B8	A320-L7
15	Bonnet stud nut	A194-2H	A194-8	A194-4
16	Trunnion	A276-304	A276-316	A276-304
17	Trunnion bearing	304+PTFE	304+PTFE	304+PTFE
18	Gland flange	A216-WCB	A351-CF8M	A352-LCB
19	Gland bolt	A193-B7	A193-B8	A193-B7
20	Stop plate	Carbon steel	Carbon steel+Zn	Carbon steel
21	Handle	Carbon steel

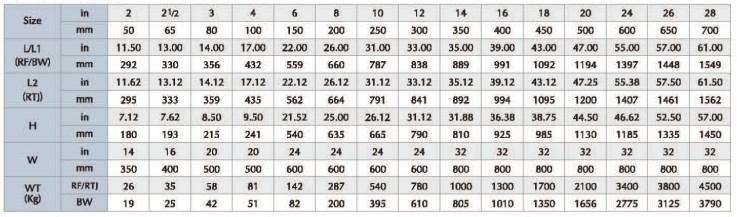

Cast steel trunnion mounted ball valve 600lb Main dimension
