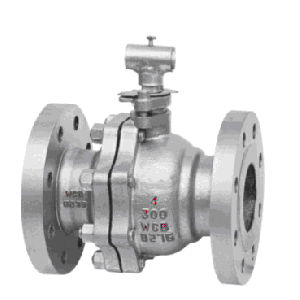

Cast steel float ball valve 300Lb

Cast steel float ball valve 300LbCast steel float ball valve 300Lb
Cast steel float ball valve 300Lb

Cast steel float ball valve 300Lb Product introduction

Cast steel float ball valve 300Lb

Cast steel float ball valve 300Lb Technical parameters

Nominal pressure :  Class 300lb
Working temp.:≤800℃
Nominal diameter: 1-1/2''- 12''
Service: Water,oil,gas,steam
Floating cast steel ball valve 300lb applicable standard :API 608/ASME B16.34
Floating cast steel ball valve 300lb face to face standard: ASME B16.10
Floating cast steel ball valve 300lb flange end standard: ASME B16.25
Floating cast steel ball valve 300lb inspection and test: API 598

Floating cast steel ball valve 300lb design description:
Full port design
BB, Bolted bonnet ,split body
Floating ball type
Blow-out proof stem
Fire durable construction
Anti static device
Stopper device
ISO 5211 Mounting pad
Flange or butt welding ends
Available with WG operator

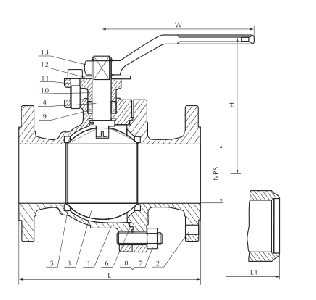

Cast steel float ball valve 300Lb Main part material

No Part name ASTM Material
Carbon steel 18Cr-9Ni-2Mo Carbon steel
1  Body A216-WCB A351-CF8M A352-LCB
2 Bonnet  A216-WCB A351-CF8M A352-LCB
3 Ball A182-F304 A182-F316 A182-F304
4 Stem A276-304 A276-316 A276-304
5 Seat ring  R.PTFE
6 Bonnet gasket Graphite+304 PTFE Graphite+304
7 Bonnet stud A193-B7 A193-B8 A320-L7
8 Bonnet stud nut A194-2H A194-8 A194-4
9 Packing PTFE
10 Gland flange A216-WCB A351-CF8M A352-LCB
11 Gland bolt A193-B7 A193-B8 A193-B7
12 Stop plate Carbon steel Carbon steel+Zn Carbon steel
13 Handle Carbon steel

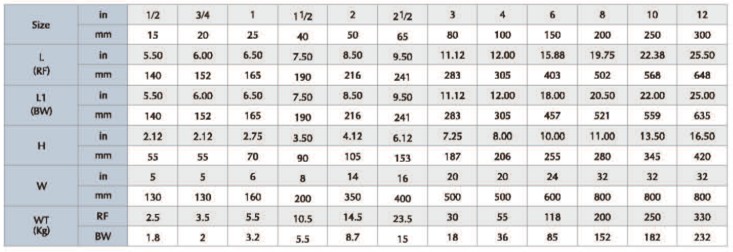

Cast steel float ball valve 300Lb Main dimension
