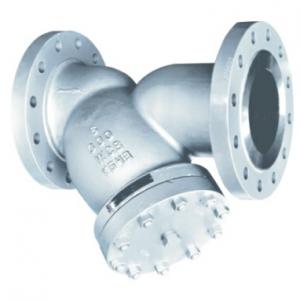

Cast steel filter 150/300Lb

Cast steel filter 150/300LbCast steel filter 150/300Lb
Cast steel filter 150/300Lb

Cast steel filter 150/300Lb Product introduction

Cast steel filter 150/300Lb

Cast steel filter 150/300Lb Technical parameters

Nominal pressure :  Class 150lb /300lb
Working temp.:≤800℃
Nominal diameter: 1/2''- 12''
Service: Water,oil,gas,steam
Cast steel Y-strainer applicable standard :API 608/ASME B16.34
Cast steel Y-strainer face to face standard: ASME B16.10
Cast steel Y-strainer  flange end standard: ASME B16.5
Cast steel Y-strainer  inspection and test: API 598

Cast steel Y-strainer design description:
Y-Pattern type
Bolted bonnet cap with drain plug
Perforated stainless steel screen
Strainer density 100 mesh design
Full range of strainer density
Renewable strainer density
Flange or butt welding ends .

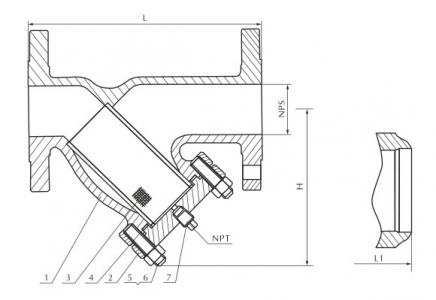

Cast steel filter 150/300Lb Main part material

No Part name ASTM Material
Carbon steel 18Cr-9Ni-2Mo Carbon steel
1  Body A216-WCB A351-CF8M A352-LCB
2 Bonnet cap A216-WCB A351-CF8M A352-LCB
3 Screen A240-304 A420-316 A240-304
4 Bonnet gasket Graphite+304 PTFE Graphite+304
5 Bonnet stud A193-B7 A193-B8 A320-L7
6 Bonnet stud nut A194-2H A194-8 A194-7
7 Plug A276-410 A276-316 A276-410

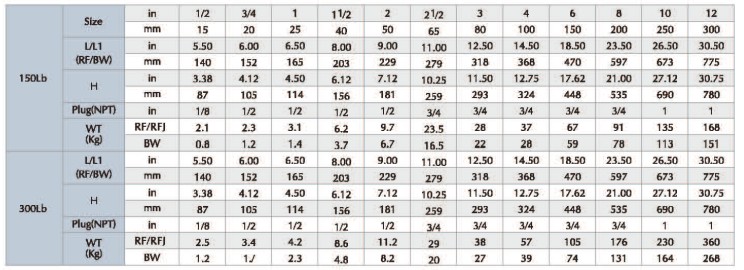

Cast steel filter 150/300Lb Main dimension

Cast steel filter 150/300Lb Related Products
