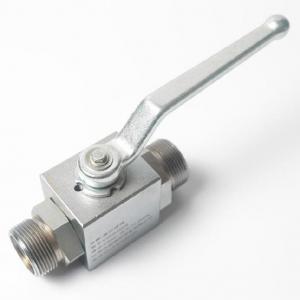

CJZQ Male threaded hydraulic ball valve

CJZQ Male threaded hydraulic ball valve Product introduction

　CJZQ hydraulic ball valve manufacturer, factory and supplier. CJZQ male threaded hydraulic ball valve Model including CJZQ-H6L, CJZQ-H8L, CJZQ-H10L, CJZQ-H15L, CJZQ-H20L, CJZQ-H25L,CJZQ-H32L, CJZQ-F40L, CJZQ-F50L. CJZQ male threaded hydraulic ball valve is suitable for opening and closing of various pipelines in hydraulic system and chemical system.Switch fast, convenient, small fluid resistance, the hydraulic ball valve to complete the full open or full close action, CJZQ male threaded hydraulic ball valve is easy to achieve fast opening and closing.Stem seal is reliable.The stem only rotates when the hydraulic ball valve opens and closes, so the stem packing seal is not easy to be broken, and the stem reverse seal sealing force increases with the increase of medium pressure.CJZQ male threaded hydraulic ball valve is applicable medium: hydraulic oil, water - glycol, other mixed liquids.

CJZQ male threaded hydraulic ball valve Technical parameters
1. Name and code: ball globe valve;
2. Medium temperature: -20℃ ~ +80℃ or high temperature;
3. Nominal size: 6 ~ 80mm;
4. Connection form: L-external thread connection type, F-flange connection type;
5. Nominal pressure: 31.5Mpa or 21Mpa;
6. Suitable medium: mineral oil, water, hydraulic system, ethylene glycol and emulsion.

CJZQ male threaded hydraulic ball valve type introduction
Code: C--Marine
Product code: JZQ--Ball stop valve
Nominal pressure: J--31.5Mpa, H-21Mpa
Nominal diameter: DN6,10,15,20,25,32,40,50,65,80mm
Connection type: L--Male thread
F--Flange

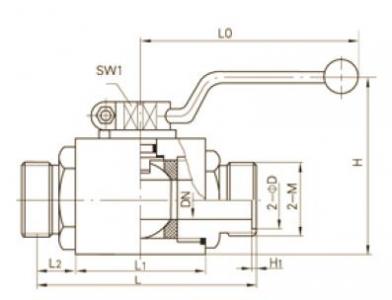

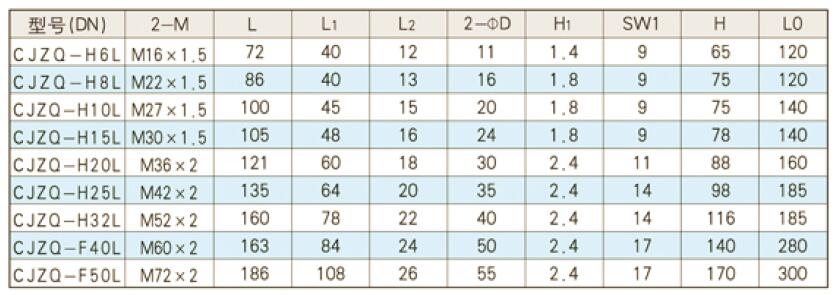

CJZQ male threaded hydraulic ball valve dimension
CJZQ male threaded hydraulic ball valve dimension

CJZQ male threaded hydraulic ball valve dimension
