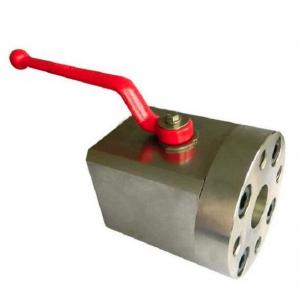

CJZQ Flanged hydraulic ball valve

CJZQ Flanged hydraulic ball valve Product introduction

CJZQ hydraulic ball valve manufacturer, factory and supplier. CJZQ flanged hydraulic ball valve Model including CJZQ-H10F, CJZQ-H15F, CJZQ-H20F, CJZQ-H25F, CJZQ-H32F, CJZQ-F40F,CJZQ-F50F, CJZQ-F65F, CJZQ-F80F. CJZQ flanged hydraulic ball valve is suitable for opening and closing of various pipelines in marine hydraulic system and chemical system.Switch fast, convenient, small fluid resistance, the marine hydraulic ball valve to complete the full open or full close action,CJZQ flanged hydraulic ball valve is easy to achieve fast opening a　nd closing.Stem seal is reliable.The stem only rotates when the hydraulic ball valve opens and closes, so the stem packing seal is not easy to be broken, and the stem reverse seal sealing force increases with the increase of medium pressure.CJZQ flanged hydraulic ball valve is applicable medium: hydraulic oil, water - glycol, other mixed liquids.

CJZQ flanged hydraulic ball valveTechnical parameters
1. Name and code: ball globe valve;
2. Medium temperature: -20℃ ~ +80℃ or high temperature;
3. Nominal size: 6 ~ 80mm;
4. Connection form: L-external thread connection type, F-flange connection type;
5. Nominal pressure: 31.5Mpa or 21Mpa;
6. Suitable medium: mineral oil, water, hydraulic system, ethylene glycol and emulsion.

CJZQ flanged hydraulic ball valve type introduction
Code: C--Marine (hydraulic)
Product code: JZQ--Ball stop valve
Nominal pressure: J--31.5Mpa, H-21Mpa
Nominal diameter: DN6,10,15,20,25,32,40,50,65,80mm
Connection type: L--Male thread
F--Flange

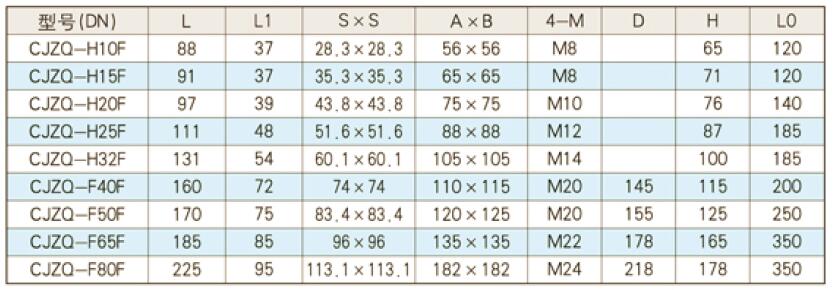

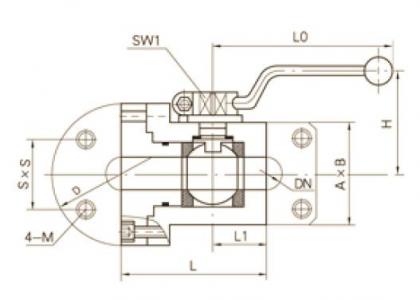

CJZQ flanged hydraulic ball valve dimension
