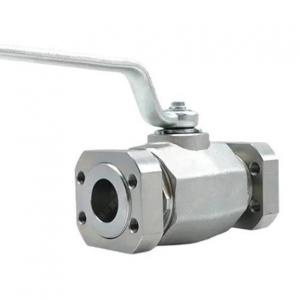

MKH SAE Flange High Pressure Ball Valve
MKH SAE Flange High Pressure Ball Valve
MKH SAE Flange High Pressure Ball Valve Product introduction
MKH SAE Flange High Pressure Ball Valve manufacturer, factory and supplier. MKH SAE flange high pressure ball valve is a two way ball valve with with a round or hexagon body design and with SAE adapter. The SAE adapter is connected to the extended thread at the both end of ball valve. MKH SAE flange high pressure ball valveis used to control, restrict or shut off liquids or gases on the system line. It is also a quarter-turn type ball valve, that contains a floating ball.
MKH SAE flange high pressure ball valve is suitable for general hydraulic oil and gases application. A special feature of this type ball valve is it was made to suit SAE 3000# (210 bar) (ISO 6162-1) and SAE 6000#(420 bar) (ISO 6162-2). MKH SAE flange high pressure ball valve has extended male thread from the ball valve where SAE adapters are connected on both ends. Typically, SAE flange end ball valves are used for hydraulic oil and gases application.
The available materials for MKH SAE flange high pressure ball valve are steel and stainless steel, with an available rating of 210 Bars and 420 Bars. SAE flange are required to connect to the SAE adapter that placed on both ends of the SAE flange ball valves.
MKH SAE flange high pressure ball valve is important to know the type of applications, and working temperature for the ball valves, in order to identify the most suitable material for the ball valves parts, such as ball seat, and seal for stem and adaptor. For the Steel material, the temperature range from -20˚C to 100˚C. while the temperature for Stainless Steel material, range from -30˚C to 100˚C.
Product name: MKH SAE flange high pressure ball valve
Product Model: MKH with SAE Flange
Drive mode: Manual
connection mode: Flanged end
Structure: Straight through
seal structure: soft se
Pressure range: 21Mpa, 31.5Mpa,42Mpa
Nominal diameter: DN10-100
Common materials: carbon steel, stainless steel and other
MKH SAE flange high pressure ball valve is suitable for hydraulic system and chemical system of all kinds of pipeline, for opening and closing.
Nominal pressure: PN 31.5 mpa test pressure: PS 48MPa
working pressure: 31.5 mpa (21Mpa, 31.5Mpa,42Mpa for optional)
Operating temperature: -20~+80C
(Note: Please explain when ordering high temperature ball valves)
Applicable medium: hydraulic oil, water, glycol, other mixed liquids
