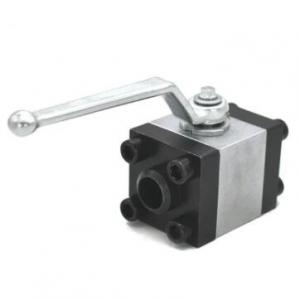

ZYQF Hydraulic ball valve 21Mpa 31.5Mpa

ZYQF Hydraulic ball valve 21Mpa 31.5Mpa Product introduction

　ZYQF hydraulic ball valve manufacturer, factory and supplier. ZYQF hydraulic ball valve 21Mpa 31.5Mpa model including ZYQF-J10F-BW, ZYQF-J15F-BW, ZYQF-J20F-BW, ZYQF-J25F-BW, ZYQF-J32F-BW, ZYQF-H40F-BW, ZYQF-H50F-BW, ZYQF-H65F-BW. ZYQF hydraulic ball valve is suitable for opening and closing of various pipelines in hydraulic system and chemical system. ZYQF hydraulic grated combination ball valve is switch fast, convenient, small fluid resistance, is the least of all valves in the fluid resistance as long as the stem rotation 90°, the ball valve to complete the full open or full close action, it is easy to achieve fast opening and closing.Stem seal is reliable.The stem only rotates when the ball valve opens and closes, so the stem packing seal is not easy to be broken, and the stem reverse seal sealing force increases with the increase of medium pressure. ZYQF hydraulic ball valve applicable medium: hydraulic oil, water - glycol, other mixed liquids.

Product name: ZYQF hydraulic ball valve 21Mpa 31.5Mpa
Product Model: ZYQF
Drive mode: Manual
connection mode: integrated
Structure: Straight through
seal structure: soft seal
Pressure range: 31.5Mpa-50mpa
Nominal diameter: DN10-80
Common materials: carbon steel, stainless steel and other

ZYQF hydraulic ball valve 21Mpa 31.5Mpa is suitable for hydraulic system and chemical system of all kinds of pipeline, for opening and closing.
Nominal pressure: PN 31.5 mpa test pressure: PS 48MPa
working pressure: 31.5 mpa
Operating temperature: -20~+80C
(Note: Please explain when ordering high temperature ball valves)
Applicable medium: hydraulic oil, water, glycol, other mixed liquids

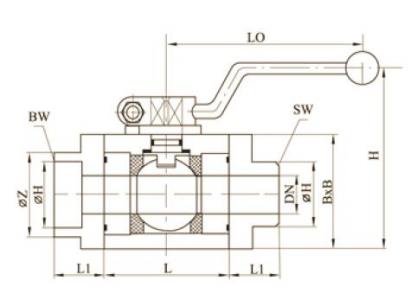

ZYQF hydraulic ball valve 21Mpa 31.5Mpa dimension

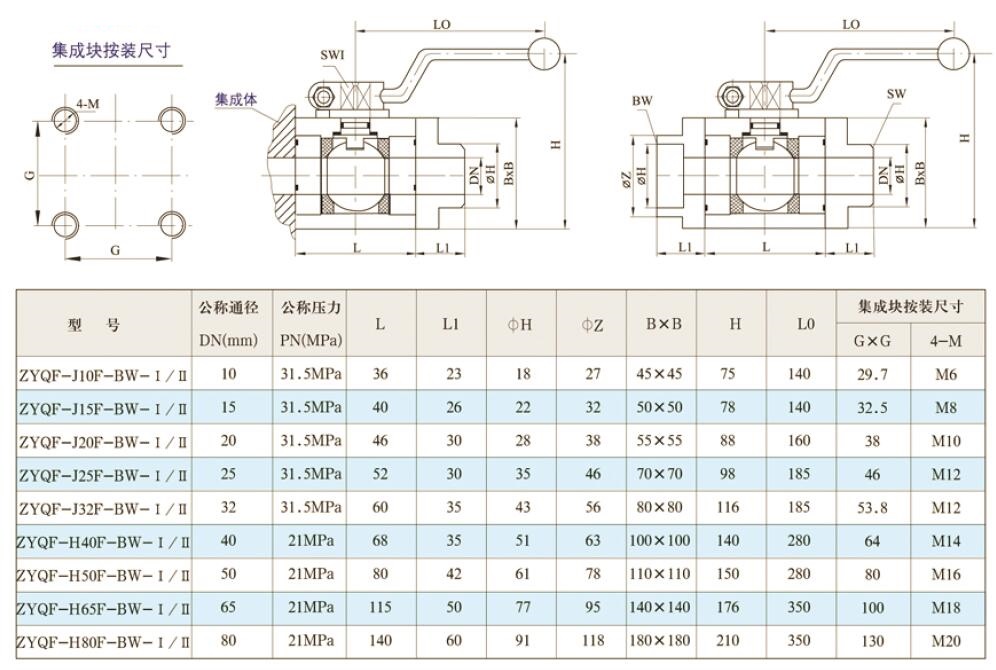

ZYQF hydraulic ball valve 21Mpa 31.5Mpa dimension
