QJH Female high pressure hydraulic ball valve Product introduction
QJH High pressure hydraulic ball valve manufacturer, factory and supplier. QJH female high pressure hydraulic ball valve model including QJH-6HL, QJH-10HL,QJH-15HL,QJH-20HL, QJH-25HL, QJH-32HL, QJH-40HL. QJH Female high pressure hydraulic ball valve is suitable for putting through and cutting off in hydraulic system pipeline.QJH Female high pressure hydraulic ball valve is made of steel forgings, the surface is chrome-plated, the appearance is beautiful, the operation is convenient, the sealing performance is good, it is the product of the hydraulic system pipeline.QJH Female high pressure hydraulic ball valve operating temperature: -20~+80℃(please explain when ordering high temperature ball valves)
QJH Female high pressure hydraulic ball valve features
QJH Female high pressure hydraulic ball valve adopts integral forging processing, the hydraulic ball valve is simple in structure, convenient in operation, small in fluid resistance, reliable in sealing performance, replaceable sealing parts and payment parts, increasing the life and reducing the user cost;QJH Female high pressure hydraulic ball valve has the characteristics of small flow resistance loss, reliable sealing performance, convenient operation and exquisite appearance.High pressure resistance, wide application, can be used to control the hydropower station oil, gas, water pipe system on and off.
QJH Female high pressure hydraulic ball valve Technical parameters
1. Name and code: ball globe valve;
2. Medium temperature: -20℃ ~ +80℃ or high temperature;
3. Nominal size: 6 ~ 80mm;
4. Connection form: HL-internal thread connection type WL-external thread connection type F-flange end connetion type B-plate connection type;
5. Nominal pressure: 21Mpa;
6. Suitable medium: mineral oil, water, hydraulic system, ethylene glycol and emulsion.
QJH Female high pressure hydraulic ball valve type introduction
Product code: QJ--Ball stop valve
Nominal pressure: H-21Mpa
Nominal diameter: DN6,10,15,20,25,32,40,50,65,80mm
Connection type: HL--Femle thread
WL--Male thread
F--Flange end
B--Board type

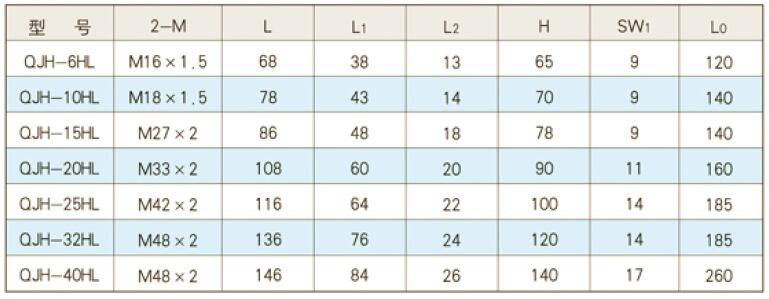

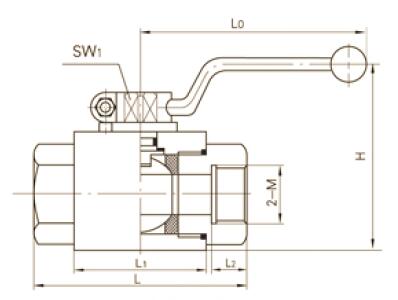

QJH Female high pressure hydraulic ball valve dimension
