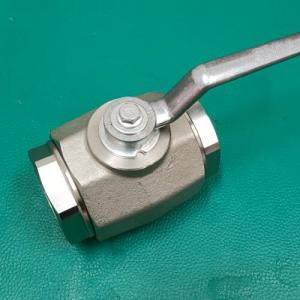

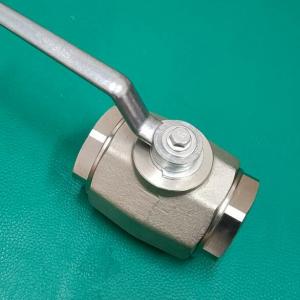

KHM High pressure hydraulic ball valve

KHM High pressure hydraulic ball valve Product introduction

　KHM High pressure hydraulic ball valve manufacturer, factory and supplier. KHM High pressure hydraulic ball valve is threaded end, which can bear 315 bar, 400 bar, 500 bar high pressure, KHM High pressure hydraulic ball valve is suitable for opening and closing of various pipelines in hydraulic system and chemical system.Switch fast, convenient, small fluid resistance, as long as the stem rotation 90°, KHM High pressure hydraulic ball valve can complete the full open or full close action, KHM High pressure hydraulic ball valve is easy to achieve fast opening and closing.Stem seal is reliable.The stem only rotates when the ball valve opens and closes, so the stem packing seal is not easy to be broken, and the stem reverse seal sealing force increases with the increase of medium pressure.KHM High pressure hydraulic ball valve is applicable medium: hydraulic oil, water, glycol, other mixed liquids.

KHM High pressure hydraulic ball valve code information

(1) Series code: KHM
(2 )Connection code: M**, G**, **LR, **SR, PT**, NPT**
(3) Body material: 1- steel, 2- stainless steel
(4) Ball material: 1- steel, 2- brass, 3- stainless steel
(5) Working temperature: 1, -25 ~ +100℃ 2, -30 ~ +170℃
(6) Other seals: 2-NBR, 4-Vition
(7)Type of handle: 01- aluminum straight handle 02- aluminum crank 03- zinc cast straight handle 04- zinc cast crank 05- steel straight handle 06- steel crank 09- without handle
(8) Design serial number: agreed by the production
(9) Surface treatment: blank - phosphating, G-plating yellow zinc

KHM High pressure hydraulic ball valve structure
