ISO 6164 Ball Valve

ISO 6164 Ball Valve Product introduction

　ISO 6164 Ball Valve manufacturer, factory and supplier. ISO 6164 ball valve is made in accordance to ISO 6164-1 (ISO250) and ISO 6164-2 (ISO400). ISO 6164 ball valve is designed to use as on/off flow devices for hydraulic applications and have a round shape body. The size range of ISO 6164 ball valve available is from DN13 to DN80, which is from 1/2” to 3”.

The working pressure of ISO 6164 ball valve is available from 100 bar to 400 bar, subjected to valve size diameter. The final maximum pressure rating of flange connection is determined by the overall working pressure of the pipeline.

ISO 6164 ball valve design to use in high pressure hydraulic systems. The valve working pressure determines by valve body size and when the body size goes bigger, the valve operation pressure goes lower. The final overall running pressure is determined by pipe or tube rating and flange connected. The working temperature ranges from -10°c to 100°c, subjected to material combination of the complete ball valve.

Size	1/2" to 3"
Material	Carbon Steel Stainless Steel
Working Pressure	250 bar 400 bar
Connection Type	ISO 6164 Flange

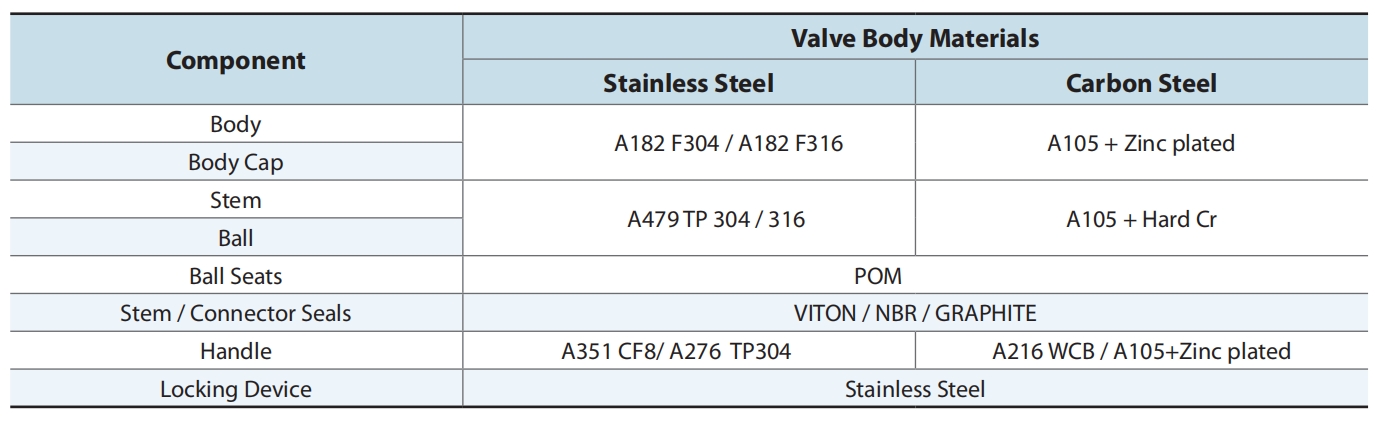

ISO 6164 ball valve material

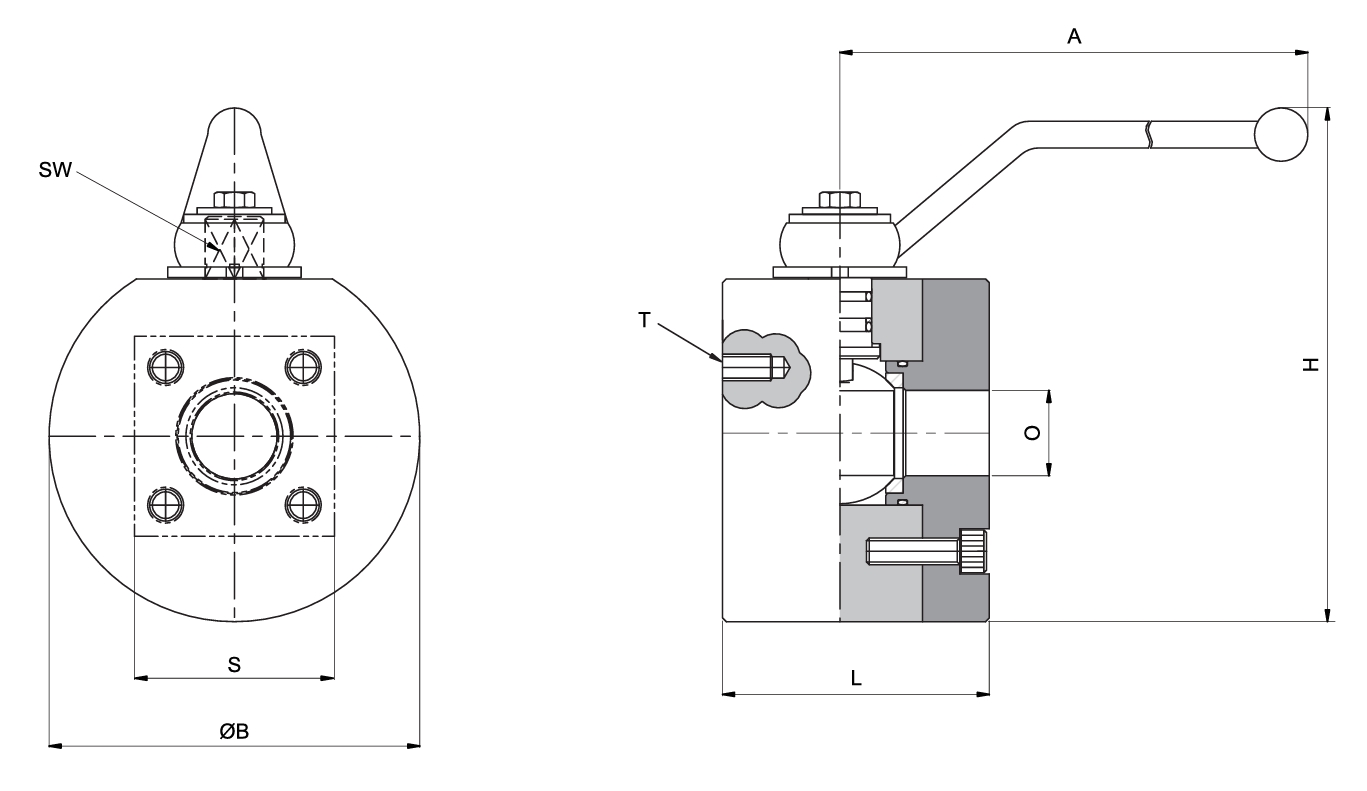

ISO 6164 ball valve structure
