SAE J518 Flanged Ball Valve

SAE J518 Flanged Ball Valve Product introduction

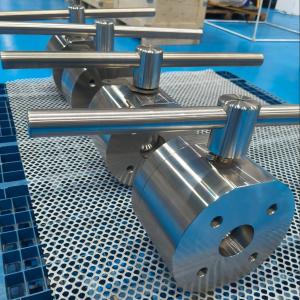

　SAE J518 Flanged Ball Valve manufacturer, factory and supplier. SAE J518 Flanged ball valve is made in accordance to SAE J518 CODE 61 (3000PSI) and SAE J518 CODE 62 (6000PSI) . SAE J518 Flanged ball valve is designed to use as on/off flow devices for hydraulic applications and have a round shape body. The size range of SAE J518 Flanged ball valve available is from DN13 to DN80, which is from 1/2” to 3”.

The working pressure of SAE J518 Flanged ball valve is available from 100 bar to 400 bar, subjected to valve size diameter. The final maximum pressure rating of flange connection is determined by the overall working pressure of the pipeline.

SAE J518 Flanged ball valve design to use in high pressure hydraulic systems. The valve working pressure determines by valve body size and when the body size goes bigger, the valve operation pressure goes lower. The final overall running pressure is determined by pipe or tube rating and flange connected. The working temperature ranges from -10°c to 100°c, subjected to material combination of the complete ball valve.

Size	1/2" to 3"
Material	Carbon Steel Stainless Steel
Working Pressure	3000 PSI 6000 PSI
Connection Type	SAE J518 Flange

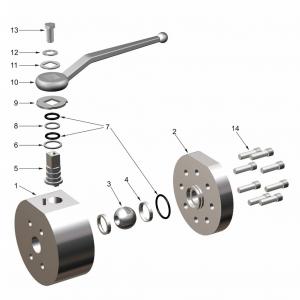

SAE J518 Flanged Ball Valve structure
