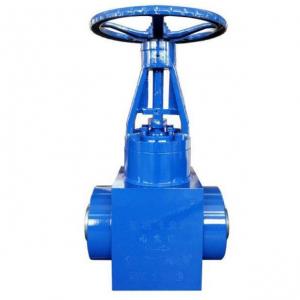

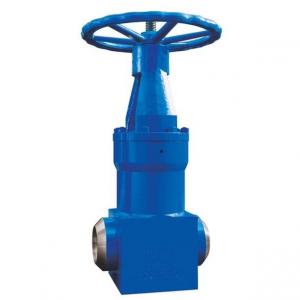

Boiler steam globe stop valve

Boiler steam globe stop valveBoiler steam globe stop valve
Boiler steam globe stop valve

Boiler steam globe stop valve Product introduction

 China Boiler steam globe stop valve manufacturer, factory and supplier. Boiler steam globe stop valve is installed in steam turbine drainage, feed water drainage, heater drainage, boiler drainage, superheater drainage, air exhaust, water wall combined tank drainage, wall drainage and other pipes and containers, as the opening and closing device. Boiler steam globe stop valve changed the traditional globe valve structure form, using the high pressure differential throttling sleeve structure. With strong anti-erosion, easy operation, long service life, valve parts can be disassembled, low maintenance costs.

Boiler steam globe stop valve specification:
sizes: DN10(3/8") up to DN300(12")

Pressure rating: PN200 up to PN420, Class 1500# – 2500#

Temperture: -20 Degree C up to 570 Degree C

Available medium: steam,etc.

Butt Weld standard: ASME B16.25

Opreation: Handwheel, electrical actuator, pneumatic actuator

Boiler steam globe stop valve structure:
1.
Boiler steam globe stop valve adopts straight through structure.
2. In order to avoid in the process of use, the media on the sealing pair of high speed scouring, sealing with double seat structure, the first throttling and blocking debris, in the use of throttling after the medium to make the sealing surface self-cleaning, so as to completely solve the valve closed, due to the dirty medium pressure on the seat sealing surface, so that the valve leakage and short service life.
3. The connection between the boiler steam globe stop valve body and the cover of the  steam valve with nominal diameter DN≤50mm is a clamp pin shaft connection, and the connection between the valve body and the cover of the high pressure steam valve with DN65 and above is a self-sealing flange connection form. These two structures are convenient to disassemble and install, safe and reliable.
4. The branch pipe at both ends of the valve is welded.
5. Boiler steam globe stop valve seat and disc sealing surface are made of imported cobalt-based hard alloy surfacing. The sealing surface has the characteristics of high hardness, abrasion resistance and abrasion resistance.
6,.The nitrogenous steel as the Boiler steam globe stop valve stem material, so that the nitrogenous valve stem surface hardness is high, wear resistance, abrasion resistance, corrosion resistance, long service life.
