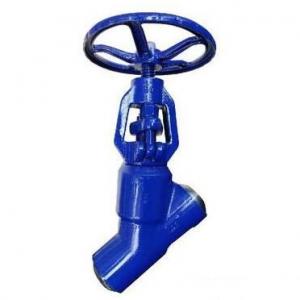

J65Y Y type high pressure globe valve

J65Y Y type high pressure globe valveJ65Y Y type high pressure globe valve
J65Y Y type high pressure globe valve

J65Y Y type high pressure globe valve Product introduction

 J65Y Y type high pressure globe valve is bonnet bolted or pressure seal bolt design with pressure from 900LB to 2500LB,J65Y Y type high pressure globe valve is used for high temperature and high pressure water,steam,oil products and super-heated steam.,etc.J65Y Y type high pressure globe valve is widely used for thermal power plant,petrochemical industry,metallurgy and other industrial sectors.Max Temperature: 425 Deg C for Carbon Steel Material, 540 Deg C for WC6 Material, 570 Deg C for WC9 Material.


J65Y Y type high pressure globe valve structure design and specification

J65Y Y type high pressure globe valve is manufactured according to API 602,BS5352,ANSI/ASME B16.34.Test and acceptance according to API 598, marking according to MSS SP-25.

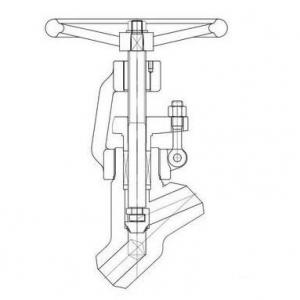

J65Y Y type high pressure globe valve structure

1. Full diameter or reduced diameter;

2. Rising stem with support;

3. Automatic self-aligning packing sleeve at both ends;

4. Bolted bonnet sealed with wound gasket, threaded sealing welded bonnet, or self-sealing bonnet

5. The body back seal;

6. Socket weld or butt weld  according to ANSI/ASME B16.11;

7. Threaded end (NPT end) according to ANSI/ASME B1.20.1.
