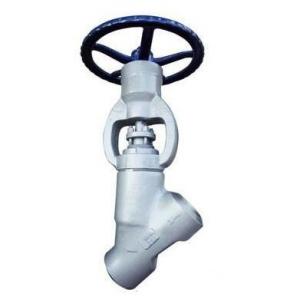

SW BW Forged steel Y type globe valve

SW BW Forged steel Y type globe valveSW BW Forged steel Y type globe valve
SW BW Forged steel Y type globe valve

SW BW Forged steel Y type globe valve Product introduction

 SW BW Forged steel Y type globe valve J65Y-250 J65Y-320 is bonnet bolted or pressure seal bolt design with pressure from 900LB to 2500LB,PN250 to PN420,SW BW Forged steel Y type globe valve is used for high temperature and high pressure water,steam,oil products and super-heated steam.,etc.SW BW Forged steel Y type globe valve is widely used for thermal power plant,petrochemical industry,metallurgy and other industrial sectors.SW BW Forged steel Y type globe valve Max Temperature: 425 Deg C for Carbon Steel Material, 540 Deg C for WC6 Material, 570 Deg C for WC9 Material.


SW BW Forged steel Y type globe valve structure design and specification

SW BW Forged steel Y type globe valve is manufactured according to API 602,BS5352,ANSI/ASME B16.34.Test and acceptance according to API 598, marking according to MSS SP-25.

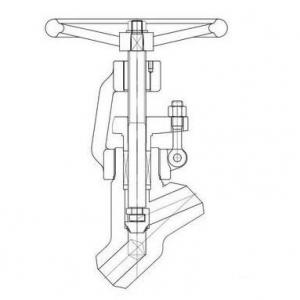

SW BW Forged steel Y type globe valve structure

1. Full diameter or reduced diameter;

2. Rising stem with support;

3. Automatic self-aligning packing sleeve at both ends;

4. Bolted bonnet sealed with wound gasket, threaded sealing welded bonnet, or self-sealing bonnet

5. The body back seal;

6. Socket weld or butt weld  according to ANSI/ASME B16.11;

7. Threaded end (NPT end) according to ANSI/ASME B1.20.1.
