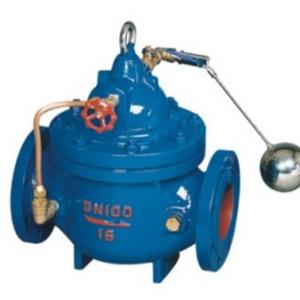

100X Remote float ball valve

100X Remote float ball valve Product introduction

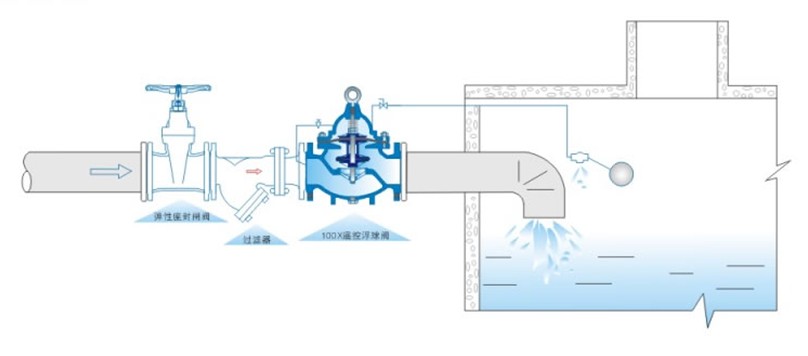

100X Remote float ball valve manufacturer, factory and supplier. 100X Remote float ball valve controls fluid level in a tank by opening fully at a low set point and closing tightly at a high set point. Standard features ease maintenance and repair, and provide the lowest total cost of ownership.

100X Remote float ball valve performance:
Corrosion resistant stainless steel float, rod, and Monel pilot valve seat
Globe, reduced port globe, and angle bodies available
150 class flanged, 300 class flanged, grooved, and threaded end connections available for installation versatility
1', 2', or 3' float rod extensions available
Remotely mounted pilot standard for easy access to main body
Valve Mounted Float Pilot (VM) option available
Available Material: Ductile Iron , Carbon Steel, Stainless Steel
Size Range: DN50-DN600 2”-24”
Pressure Range: PN10, PN16, 150Lb, 300Lb

100X Remote float ball valve Technical parameters

PN(Mpa)	Shell test(MPa)	Seal test(MPa)	Medium	Temperature(℃)
1.0	1.5	1.1	Water	0-80
1.6	2.4	1.76
2.5	3.75	2.75

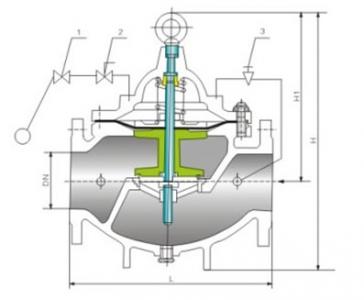

100X Remote float ball valve Main dimension

Size	Dimension(mm)
DN(mm)	L	A1	A	H1	H	F
20	150	130	325	179	212	116
25	160	130	325	179	212	116
32	180	130	325	179	212	116
40	200	140	335	210	265	168
50	203	140	335	210	265	168
65	215	140	335	215	310	180
80	241	145	345	245	350	210
100	270	155	365	305	460	284
125	300	165	385	365	520	310
150	330	180	410	415	570	370
200	400	205	465	510	840	463
250	480	225	505	560	890	525
300	550	245	545	658	1030	625
350	622	275	595	696	1090	705
400	685	285	625	735	1150	778
450	750	285	625	735	1150	778
500	811	410	780	750	1110	690
600	935	456	888	850	1286	785
