CARX Composite air release valve

CARX Composite air release valve Product introduction

　CARX Composite air release valve belongs to quick exhaust valve.CARX Composite air release valve body is a cylinder shape, composed of stainless steel float ball, lever and disc. CARX Composite air release valve often fixed in the highest point or closing space of the pipeline, to release air to keep the channel open and increase the efficient use of pipes and pump.

CARX Composite air release valve working princeple
When injecting water into pipeline, the disc keep open to exhaust air; After CARX Composite air release valve is full of water, then no air in it, the float ball will rise, which will drive the disc close. When the pipeline transit the water, the water level will fall if the little air gather into a certain amount, then the air will be exhausted through ostiole. But the plug will be opened quickly to absorb air when no water or negative pressure in the pipes after closing the pump, to keep the pipeline safe.

CARX Composite air release valve specification

Valve Name	CARX Composite air release valve
Valve Name	1.0-1.6 MPa
Nominal Diameter	DN25-30 threaded type; DN50-200 flanged type;
Media	Water, oil and non-corrosive fluid
Suitable Temperature	0-80℃
Test Standard	GB/T 13927-1992

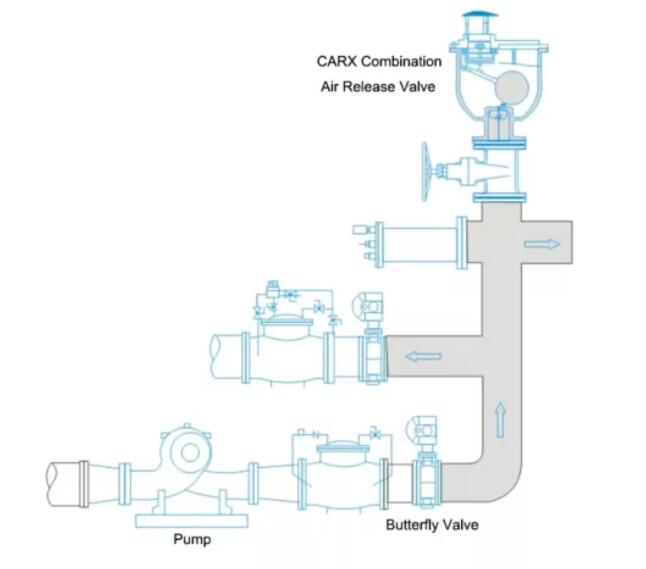

CARX Composite air release valve installation place

CARX Composite air release valve Related Products
