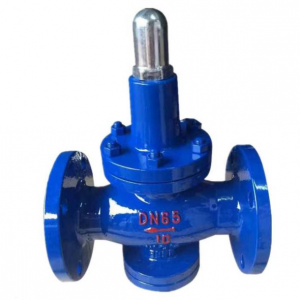

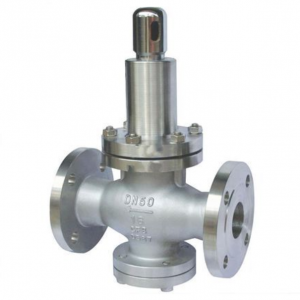

Y42X Y42F Water pressure reducing valve

Y42X Y42F Water pressure reducing valve Product introduction

　Y42X Y42F Water pressure reducing valve is direct acting diaphragm spring structure, Y42X Y42F Water pressure reducing valve mainly consists of adjusting spring, diaphragm, piston, seat, disc and other parts.The pressure downstream of the diaphragm can be directly sensed to drive the disc, and the water pressure reducing valve opening can be controlled to realize pressure reduction and pressure stabilization. Y42X Y42F Water pressure reducing valve can replace the conventional sectional water pipe and save equipment in the cold and hot water supply system of urban buildings and high-rise buildings.Y42X Y42F Water pressure reducing valve can also be in the usual hot and cold pipeline.

Y42X Y42F Water pressure reducing valve material

Part Name	Part Material
Body/Bonnet/End bonnet	WCB/Cast iron/Ductile iron
Seat	2Cr13/
Cylinder sleeve	2Cr13/Copper
Piston	Cast iron
Guide valve seat / stem	2Cr13
Main valve spring	1Cr18Ni9Ti
Guide valve sprig	50CrVA
Regulating spring	60Si12Mn

Y42X Y42F Water pressure reducing valve technical parameter

Nominal pressure（MPa）	1.0	1.6	2.5
Shell test pressure（MPa）	1.5	2.4	3.75
Seal test pressure（MPa）	1.1	1.6	2.5
Max. Inlet pressure（MPa）	1.1	1.6	2.5
Outlet pressure range（MPa）	0.2-0.8	0.2-1.0	0.4-1.6
Pressure characteristic deviation（MPa）△P2P	GB12246-1989
Flow characteristic deviation（MPa）△P2G	GB12246-1989
Max. Pressure difference（MPa）	0.15	0.15	0.15
Leakage Level	0 m L/min

Note:Shell test does not include diaphragm and roof.
