600X Electric control water valve

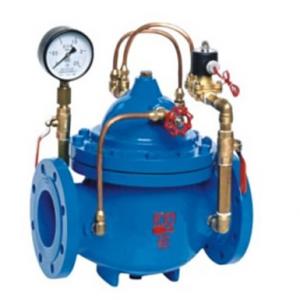

600X Electric control water valve Product introduction

600X Electric control water valve manufacturer, factory and supplier. 600X Electric control water valve is a hydraulic operated valve with a solenoid as the guide valve. 600X Electric control water valveis commonly used in automatic control in water supply and drainage and industrial system. The control reaction is accurate and fast, and remote open and closing pipeline system according to the electrical signal to realize remote operation. It can replace gate and butterfly valves for large electric operating system. 600X Electric control water valve closing speed is adjustable and closed smoothly without pressure fluctuations. 600X Electric control water valve is small in volume, light in weight, easy in maintenance, easy to use, safe and reliable. Solenoid valve can be selected from AC power 220V, or DC power 24V, can be selected often open or often closed type according to various occasions.

600X Electric control water valve Technical parameters

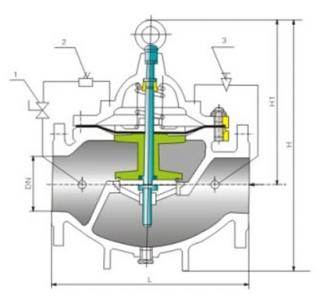

600X Electric control water valve Main dimension

DN	L	A	A1	H	H1	F	D mm			D1 mm			D2 mm			n-Φd
DN	mm	mm	mm	mm	mm	mm	PN1.0	PN1.6	PN2.5	PN1.0	PN1.6	PN2.5	PN1.0	PN1.6	PN2.5	PN1.0	PN1.6	PN2.5
20	180	194	136	342	250	116	105	105	105	75	75	75	58	58	56	4-13.5	4-13.5	4-14
25	180	194	136	342	250	116	115	115	115	85	85	85	68	68	65	4-13.5	4-13.5	4-14
32	180	194	136	342	250	116	140	140	140	100	100	100	78	78	76	4-17.5	4-17.5	4-18
40	240	240	155	395	278	170	150	150	150	110	110	110	88	88	84	4-17.5	4-17.5	4-18
50	240	240	155	395	278	170	165	165	165	125	125	125	102	102	99	4-17.5	4-17.5	4-18
65	255	255	165	405	298	180	185	185	185	145	145	145	122	122	118	4-17.5	4-17.5	8-18
80	280	280	175	430	315	210	200	200	200	160	160	160	133	133	132	8-17.5	8-17.5	8-18
100	360	332	195	510	350	275	220	220	235	180	180	190	158	158	156	8-17.5	8-17.5	8-22
125	400	375	220	560	365	310	250	250	270	210	210	220	184	184	184	8-17.5	8-17.5	8-26
150	455	408	230	585	420	355	285	285	300	240	240	250	212	212	211	8-22	8-22	8-26
200	585	485	255	675	450	460	340	340	360	295	295	310	268	268	274	8-22	12-22	12-26
250	650	550	300	730	470	500	395	405	425	350	355	370	320	320	330	12-22	12-26	12-30
300	800	630	340	760	490	580	445	460	485	400	410	430	370	370	389	12-22	12-26	16-30
350	860	735	415	840	526	640	505	520	555	460	470	490	430	430	448	16-22	16-26	16-33
400	960	788	430	910	570	715	565	580	620	515	525	550	482	482	503	16-26	16-30	16-36
450	1075	850	460	1070	610	780	615	640	670	565	585	600	532	550	548	20-26	20-30	20-36
500	1075	905	490	1135	665	830	670	715	730	620	650	660	585	585	609	20-26	20-33	20-36
600	1230	970	530	1270	725	920	780	840	845	725	770	770	685	685	720	20-30	20-36	20-39
700	1650	1050	560	1460	865	980	895	910	960	840	840	875	800	800	820	24-30	24-36	24-42
800	1750	1135	610	1640	975	1050	1015	1025	1085	950	950	990	905	905	928	24-33	24-39	24-48
