P41X Single orifice air exhaust valve

P41X Single orifice air exhaust valve Product introduction

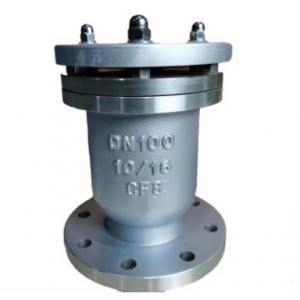

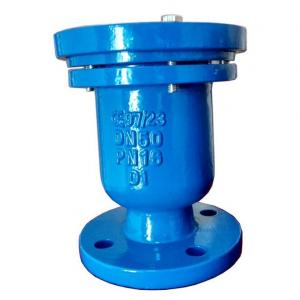

　P41X Single orifice air exhaust valve is a barrel valve body, its internal structure is mainly stainless steel float ball. P41X Single orifice air exhaust valve is divided into wire buckle and flange type exhaust valve. P41X Single orifice air exhaust valve is suitable for the pipeline with operating temperature ≤80℃, as the equipment to eliminate the gas in the pipeline.

P41X Single orifice air exhaust valve components
1	Body	Ductile iron,carbon steel, stainless steel
2	Bonnet	Ductile iron,carbon steel, stainless steel
3	Ball	Stainless steel
4	ring	EPDM

P41X Single orifice air exhaust valve working principle

When the pipe starts filling, the float will float up slowly, P41X Single orifice air exhaust valve has been vented. When a certain pressure is reached, the float tightly against the rubber ring, indicating that all the air has been discharged from the exhaust nozzle.
