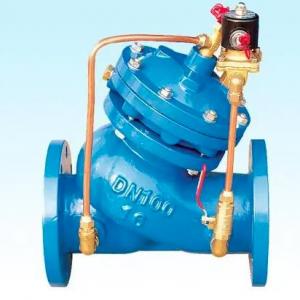

J145X electric remote water control valve

J145X electric remote water control valve Product introduction

　J145X electric remote water control valve manufacturer, factory and supplier. J145X electric remote water control valve by the main valve and control valve and takeover system, which is a hydraulic driven solenoid valve control valve, mainly through the solenoid valve to receive open or closed signal and control valve switch.

J145X electric remote water control valve body adopts the straight flow valve body, the main valve control room is diaphragm type or piston type double control room structure, the control room is increased by one than the general hydraulic control valve, increase the control function of the main valve, to achieve the pump outlet slowly open, fully open, slowly closed, cut off and other multifunctional control, to achieve a valve, a regulation of the pump outlet multifunctional control. According to electrical signal or manual operation, make the valve open or close, accurate and fast control reaction. The closing speed is adjustable and the valve closes smoothly without pressure fluctuation. Adopt three-way solenoid valve, easy maintenance.

J145X electric remote water control valve is installed in all kinds of water supply, construction, petroleum, chemical, metallurgy, drainage, food, power station, nuclear power and other fields of the pipeline, according to the electrical signal or manual operation, so that the valve open or close.

J145X electric remote water control valve features: accurate and fast control response, the closing speed can be adjusted, the valve closed smoothly without pressure fluctuations, the use of three-way solenoid valve, simple maintenance.

J145X electric remote water control valve Main technical parameters：

1. Nominal pressure: 1.0MPa, 1.6MPa, 2.5MPa

2. Applicable medium: water

3, medium temperature: 0~80 C

4. Description of solenoid valve: voltage: AC 220V DC: 24V

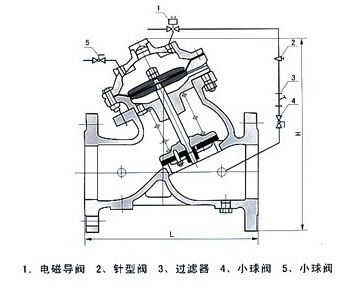

J145X electric remote water control valve dimension：

DN	50	65	80	100	125	150	200	250	300	350	400	450	500	600
L	205	216	250	320	365	415	500	605	698	787	914	978	978	1150
H	320	367	400	452	522	592	696	810	943	1200	1230	1230	1270	1600

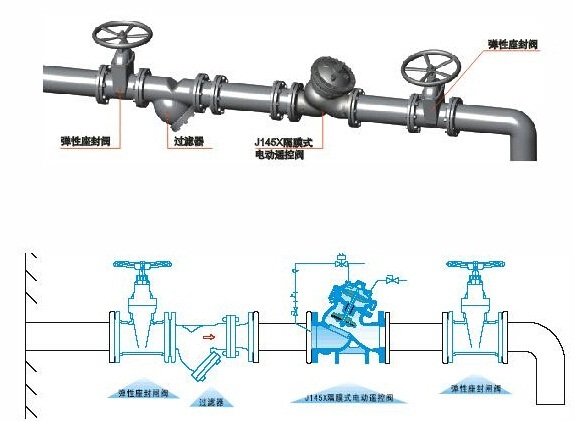

J145X electric remote water control valve installation
