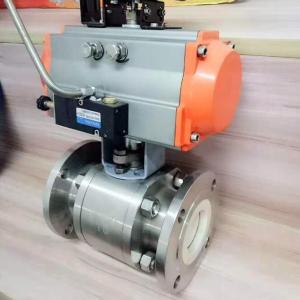

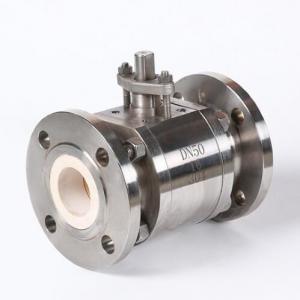

Ceramic Ball Valve For Conveying Lithium Powder manufacturer, factory and supplier in China. Ceramic Ball Valve For Conveying Lithium Powder is used in lithium battery powder transportation, optimized the valve structure and material, and successfully provided a large number of high-quality special ceramic lined ball valves for battery powder raw material manufacturers. According to the technological characteristics of ternary polymer, lithium carbonate, lithium iron phosphate and other lithium battery materials, a special ceramic ball valve for pneumatic conveying system of positive and negative materials of lithium battery was specially developed. Lithium battery powder has special requirements compared with other materials, positive and negative materials can not contain iron, copper, zinc and other metal impurities, especially can not have bivalent iron, otherwise it will affect the performance and life of the battery. Ceramic Ball Valve For Conveying Lithium Powder channel materials are made of wear-resistant ceramic materials, which are both wear-resistant and free of metal impurities such as iron, copper, zinc, and will not pollute the medium, ensuring the purity of electromagnetic powder, which is the most ideal valve type for the pneumatic conveying system of positive and negative lithium battery materials.
Ceramic Ball Valve For Conveying Lithium Powder in contact with the medium are structural ceramic materials, which have high chemical stability and hardness (Rockwell hardness HRC90), second only to diamond. Therefore,Ceramic Ball Valve For Conveying Lithium Powder has high wear resistance, corrosion resistance, erosion resistance, and good heat insulation, small thermal expansion.
Ceramic Ball Valve For Conveying Lithium Powder specification
Nominal diameter: DN15~300mm(1/2"~12")
Nominal pressure: PN1.0~4.0MPa(150~600Lb)
Applicable temperature: ≤ 300℃
Materia:carbon steel,stainless steel,etc
Medium: polycrystalline silicon powder, pulverized coal, powdery granule, gesso fluid,sulfuric acid, hydrochloric acid etc.
Application range: pipeline system on-off devices in the fields of power, oil, chemical engineering etc.
Ceramic Ball Valve For Conveying Lithium Powder ceramic material performance
Hardness and Wear Resistance
Abrasion from entrained solids in liquid flows, high viscosity slurries, pneumatic conveying, and many other demanding services can drastically reduce the life of most traditional valve styles. Lined valves utilizing ceramic materials that exhibit hardness values substantially higher than most metals can maximize the life of the valve.
Corrosion Resistance
Compared to other wear resistant materials, ceramic materials are much more corrosion resistant and can be used in a broad range of corrosive applications. Ceramics are completely resistant to most solvents, aqueous brines, and acids, even at relatively high temperatures.
Thermal Shock Resistance
Ceramic components maintain their shape and strength as well as physical characteristics up to extremely high temperatures. However, rapid changes in temperature (thermal shock) can prove challenging for ceramics.
