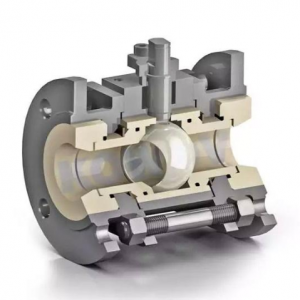

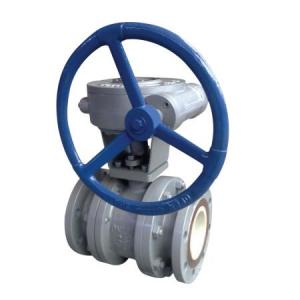

Fully lined ceramic ball valve Product features
1. High strength forged steel fully lined ceramic ball valve can adopt A105N, SS304, SS316, and SS316L as material in view of specific operating conditions. The three-section structural design of this valve ensures high strength valve body,
and simple reliable structure.
2. High wear resistance: Besides good corrosion resistance, structural ceramics have extremely high hardness, up to HRA88, and even higher, only lower than diamond. Therefore, fully lined ceramic has the best performance in various operating conditions of abrasion and strong scouring.
3. High corrosion: Valve body, valve seat and valve body inner chamber that touch medium inside the valve all adopt ceramic structure materials. Such ceramics have high chemical properties, hardly reacting with any chemical medium, which enables ceramic ball valves to be applicable to most high corrosion type medium.
Fully lined ceramic ball valve specification
Nominal diameter: DN15~600mm(1/2"~24")
Nominal pressure: PN1.0~4.0MPa(150~600Lb)
Applicable temperature: ≤ 300℃
Materia:l arbon steel,stainless steel,etc
Medium: polycrystalline silicon powder, pulverized coal, powdery granule, gesso fluid,
sulfuric acid, hydrochloric acid etc.
Application range: pipeline system on-off devices in the fields of power, oil, chemical
engineering etc.
