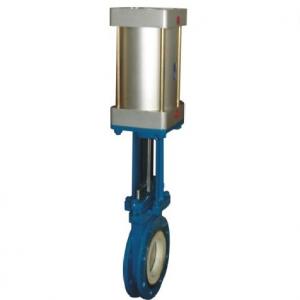

Ceramic lined knife gate valve

Ceramic lined knife gate valve Product introduction

Ceramic lined knife gate valve Product features
Ceramic lined knife gate valve is applicable to power plant dry ash system and bin pump discharge conveying, and ceramic lined knife gate valve is also suitable for opening and closing pipelines that contain such medium as abrasive dry dust, water, slag water in the fields of mining, paper making and chemical engineering. Nominal pressure is 0.1MPa, adaptive temperature is no more than 200℃ , and air source pressure is 0.6~0.8MPa.

Ceramic lined knife gate valve specification

Nominal diameter: DN50~600mm ( 2"-40")

Nominal pressure: PN1.0~4.0MPa(150-300Lb)

Applicable temperature: ≤ 200℃

Material： carbon steel.stainless steel,etc.

Medium: dry ash, pulverized coal ash, and sold granule etc.

Application range: dry ash, pulverized coal ash of control systems in steel plant, power plant,

metallurgy plant etc.
