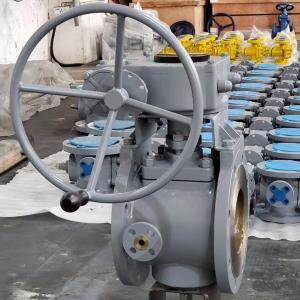

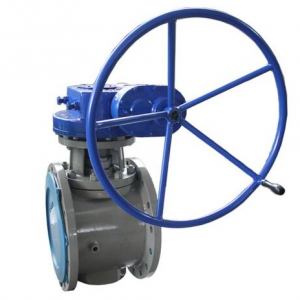

2 Way fully jacketed plug valve

2 Way fully jacketed plug valve Product introduction

　2 Way fully jacketed plug valve is used to sustain process media temperature during process to keep fluids at a lower viscosity to operate valve smoothly. 2 Way fully jacketed plug valve is widely used in High Viscous Process Media,Bitumen / Asphalt / Coal tar/ Pitch process application and other anti-crystallization and heating insulation industry system.

2 Way fully jacketed plug valve is generally supplied with manual hand lever or gear unit operated, depending on valve size.we also offering plug valve with either Pneumatic or Electrical actuator operated for automation.

2 Way fully jacketed plug valve manufacturer in size starts from DN15 x DN 40 (1/2″ X 1-1/2″) to DN150 x DN250 (6″ x10″).
The Jackets assure consistent valve Heating or Cooling of the process media to prevent crystallization or seizing of flow media. The Stainless steel Lift jacketed plug valve with very well design to help the high temperature steam or oil flow over the valve ball & body parts to keep the media liquid.

2 Way fully jacketed plug valve is generally supplied with manual hand lever or gear unit operated, depending on jaketed plug valve size.we also offering plug valve with either Pneumatic or Electrical actuator operated for automation.

2 Way fully jacketed plug valve specification:

Design Standard	BS EN ISO 17292 (BS 5351) / BS EN ISO 12516 / ASME B 16.34
Inspection & Testing Standard	BS EN ISO 12266 - I (BS 6755 - I)
Flange To Flange Distance	As Per ANSI B 16.10
End Connection	Flanged End to ANSI B 16.5, Class 150 / 300
	PN 6 / PN 10 / PN 16 / PN 25 / PN 40
	DIN Standard / JIS Standard / IS Standard
Manufacuring Size Range	1/2" x 1" (DN 15 x DN 25) to 6" x 10" (DN 150 x DN 250)
Pressure Rating of Valve	150# / 300#
	PN 10 / PN 16 / PN 25 / PN 40
Valve Operation	Manual Hand Lever / Worm-Gear Operated
	Pneumatic Actuator / Electrical Actuator
Jacket Connection Type	Flanged End / Threaded End (BSP/NPT - Female)

For more jacketed valve information, you can visit our website: www.jacketvalve.com
