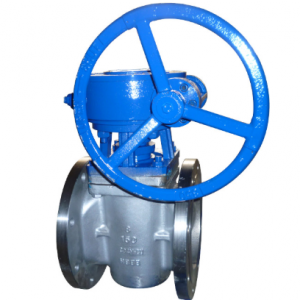

Soft seated sleeve type plug valve Product introduction

China sleeve type plug valve manufacturer,factory and supplier for Soft seated sleeve type plug valve,which has no cavity for medium accumulation, metal lip provides self-cleaning function when the sleeve plug valve turns,Soft seated sleeve type plug valve is suitable for cutting off or connecting pipeline medium under nominal pressure CLASS150~CLASS600 and working temperature -29℃ ~ 180℃ in petroleum, chemical industry, pharmaceutical industry, chemical fertilizer industry, electric power industry and other working conditions.

Soft seated sleeve type plug valve specification
Nominal pressure range: 150Lb-600lb or 1.00-6.4Mpa
Nominal size: 1/2"--16" (DN15--DN400)
Applicable temperature: -29~ 180℃
Material: cast steel, 304, 304L, 316, 316L stainless steel, etc
Pipe connection: flange connection, welding
Form: two or three way
Seal structure: soft seal
Operation mode: manual, turbine, pneumatic, hydraulic, electric (optional)
Applicable medium: petrochemical industry, chemical industry, gas, natural gas, liquefied petroleum gas and general industry.

Soft seated sleeve type plug valve feature
1. Soft seal of clamp sleeve has reasonable structure, reliable seal, excellent performance and beautiful appearance.
2. Sealing is through the cover around the card to achieve.Unique 360° metal lip protection fixed clamp sleeve.
3. No cavity to the media accumulation.
4. The metal lip provides self-cleaning function when the plug is rotating, suitable for sticky and easy scaling working conditions.
5. Two-way flow, more convenient to use and install.
6. The material and flange size of the parts can be reasonably selected according to the actual working conditions or user requirements to meet various engineering needs.

Soft seated sleeve type plug valve manufacturing standard
Design and Manufacturing standards: API599, API6D
Structural length standard: ASMEB16.10
Connection flange standard: ASMEB16.5
Pressure and temperature class: ASMEB16.34
Test standard: API598.API6D

Soft seated sleeve type plug valve Material specifications
NO. Part name Material
A216 WCB A351 CF8 A351 CF8M A351 CF3 A351 CF3M
1 Body A216 WCB A351 CF8 A351 CF8M A351 CF3 A351 CF3M
2 sleevd PTFE/RPTFE
3 Plug A182 F6a A351 CF8 A351 CF8M A351 CF3 A351 CF3M
4 Gasket Flexible graphite+stainless steel PTFE
5 Adjusting gasket A182 F6a A182 F304 A182 F316 A182 F304L A182 F316L
6 Cover A216 WCB A351 CF8 A351 CF8 A351 CF3 A351 CF3M
7 Adjusting bolt A193 B7 A193 B8 A193 B8M A193 B8M A193 B8M
8~9 Bolt/nut B7/2H B8/8 B8M/8M B8M/8M B8M/8M
10 Wrench AsTM A105/A216 WCB
