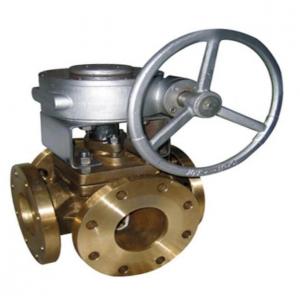

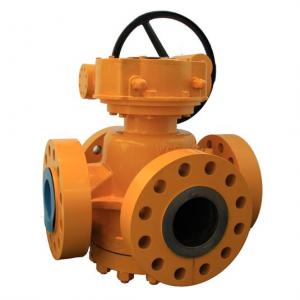

China 4 way plug valve

China 4 way plug valveChina 4 way plug valve
China 4 way plug valve

China 4 way plug valve Product introduction

China 4 way plug valve,four way plug valve,4 way diverter valve,multi-port plug valve manufacturer,factory and supplier.4 way plug valve is applicable to change the medium flowing direction to distribute the mediums,4 way plug valve is used in various industries such as petroleum, chemical industry, pharmacy, chemical fertilizer, power, industry etc. under nominal pressure class 150-900LBS, PN 1.0-16.0, working temperature of -40~450℃

China 4 way plug valve feature:
1.4 way plug valve has reasonable structure, reliable sealing, excellent performance and beautiful appearance.
2. According to different conditions,4 way plug valve can be designed into various medium flowing forms or all kinds of materials(Cast iron, cast steel, stainless steel ) or various sealing forms (e.g. metal to metal, sleeve type, lubricated, etc.)
3. The materials of the parts and sizes of flanges can be configured reasonably according to the actual operation the customer required, so as to meet the various needs of engineering.

China 4 way plug valve requirement:

Structural formation BB-BG
Diving manner Hand wheel, worm, worm gear, pneumatic, electric-actuated
Design standard AP1599, AP16D, GB12240
Face to face ASME B16.10, GB12221,DIN3202
Flange end ASME B 16.5,JB79,GB9113,DIN2543-2545
Test &inspection AP1598.AP16D,GB13927,DIN3230

Four way diverter valve,4 way plug valve technical requirement
Product name Four way plug valve,4 way plug valve
Model Number X45
Size Range DN15~600 1/2"~24"
Pressure Rating 1.6MPa,2.5MPa,4.0MPa,6.4MPa,10.0MPa,150LB,300LB,600LB 900LB
Temperature Rating -30~+220℃(Temperature range subject to the material of sealing and the property of medium)
Flange Drilling DIN ANSI BS,etc.
Testing Shell Test and Seal Test
Main Material WCB,CF8,CF8M,CF3,CF3M,2205,2507,904L,etc.(Other materials are available under request.
Advantage According to different conditions, the 4 way plug valve can be designed into diverseful media flowing forms(eg."L" type or "T" type) and many kinds of sealing forms(eg. Metal to metal, sleeve type, lubricated, etc.). There is no cavity in the valve for accumulation of medium.
