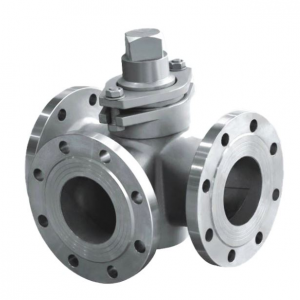

China 3 way plug valve

China 3 way plug valve Product introduction

China 3 way plug valve manufacturer,factory and supplier for T port or L port plug valve with different material and pressure class,3 way plug valve is applicable in petrochemical industry, chemical industry, gas, natural gas, liquefied petroleum gas, hvAC industry and general industry with Nominal pressure range: 150Lb-600Lb,Nominal size: 1/2"--24" (DN15--DN600),Applicable temperature: -40~+450℃,Operation mode: manual, turbine, pneumatic, hydraulic, electric (optional).

China 3 way plug valve feature:
1. China 3 way plug valve has reasonable structure, reliable sealing, excellent performance and beautiful appearance.
2. According to different conditions,3 way plug valve can be designed into various medium flowing forms (e.g." type or "T" type)or all kinds of materials(Cast iron, cast steel, stainless steel ) or various sealing forms (e.g. metal to metal, sleeve type, lubricated, etc.)
3. The materials of the parts and sizes of flanges can be configured reasonably according to the actual operation the customer required, so as to meet the various needs of engineering.
4.3 way plug valve is applicable to change the medium flowing direction to distribute the mediums,Three way stainless steel plug valve are used in various industries such as petroleum, chemical industry, pharmacy, chemical fertilizer, power, industry etc. under nominal pressure class 150-900LBS, PN 1.0-16.0, working temperature of -40~450℃

China 3 way plug valve technical requirement:

Diving manner	Hand wheel, worm, worm gear, pneumatic, electric-actuated
Design standard	AP1599, AP16D, GB12240
Face to face	ASME B16.10, GB12221,DIN3202
Flange end	ASME B 16.5,JB79,GB9113,DIN2543-2545
Test ＆inspection	AP1598.AP16D,GB13927,DIN3230
