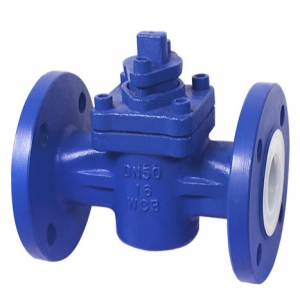

Full teflon PTFE lined plug valve

Full teflon PTFE lined plug valveFull teflon PTFE lined plug valve
Full teflon PTFE lined plug valve

Full teflon PTFE lined plug valve Product introduction

Full teflon PTFE lined plug valve is applied to -40 ℃ ~ 180 ℃ of various concentrations of aqua regia, sulfuric acid, hydrochloric acid, hydrofluoric acid and various organic acids, strong acids, strong oxidants, and Full teflon PTFE lined plug valve is also used in the pipes of various concentrations of alkali organic solvents and other corrosive gases, liquid media.Full teflon PTFE lined plug valve can be designed according to ANSI & DIN & GB/JB/HG standard, Full teflon PTFE lined plug valve is widely used for desalt industry, petroleum, chemical industry, pharmacy,chemical fertilizer, power industry etc.

Full teflon PTFE lined plug valve Product Specification
Body Material: WCB, ASTM A395 , CF8 ,CF8M
Lining Material: PTFE , PFA , PO ,FEP
Nominal Diameter: 1/2"-14"(DN15~DN350
Pressure Range: Class150 , Class300 , PN10 , PN16
Operation Method: Manual , Worn gear ,Electric ,Pneumatic actuator

Full teflon PTFE lined plug valve technical Specification
Design and Manufacture Standard: ASME B16.34, HG/T 3704
Face-to-face Dimension: ASME B16.10 , GB/T 12221
Flange Standard: ASME B 16.5 ,GB/T 9119 ,DIN ,JIS
Inspection and Testing: API 598, GB/T 13927

Full teflon PTFE lined plug valve main features
1. Suitable for regular operation;
2. Quick and light opening and closing;
3. Low fluid resistance;
4. Good sealing performance;
5. No vibration and low noise;
6. Any installation;
7. Simple structure, small relative volume, convenient for maintenance;
8. The lining layer has extremely high chemical stability.
9. Full teflon PTFE lined plug valve can be used in the whole pressure range to avoid leakage and shut off more convenient to the line system and pipeline maintenance;
