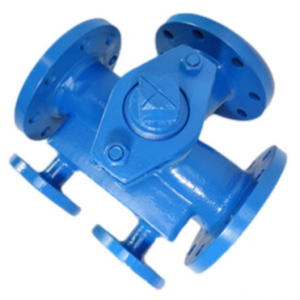

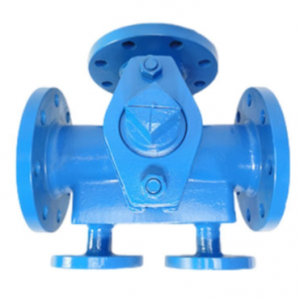

3 Way jacketed plug valve

3 Way jacketed plug valve3 Way jacketed plug valve
3 Way jacketed plug valve

3 Way jacketed plug valve Product introduction

 3 Way jacketed plug valve is largely use to sustain process media temperature during process to keep fluids at a lower viscosity to operate valve smoothly. 3 Way jacketed plug valve is widely used in High Viscous Process Media,Bitumen / Asphalt / Coal tar/ Pitch process application and other anti-crystallization and heating insulation industry system.

3 Way jacketed plug valve is generally supplied with manual hand lever or gear unit operated, depending on valve size.we also offering plug valve with either Pneumatic or Electrical actuator operated for automation.

3 Way jacketed plug valve specification

Design Standard BS EN ISO 17292 (BS 5351) / BS EN ISO 12516 / ASME B 16.34
Inspection & Testing Standard BS EN ISO 12266 - I (BS 6755 - I)
Flange To Flange Distance As Per ANSI B 16.10
End Connection Flanged End to ANSI B 16.5, Class 150 / 300
  PN 6 / PN 10 / PN 16 / PN 25 / PN 40
  DIN Standard / JIS Standard / IS Standard
Manufacuring Size Range 1/2" x 1" (DN 15 x DN 25) to 6" x 10" (DN 150 x DN 250)
Pressure Rating of Valve 150# / 300#
  PN 10 / PN 16 / PN 25 / PN 40
Valve Operation Manual Hand Lever / Worm-Gear Operated
  Pneumatic Actuator / Electrical Actuator
Jacket Connection Type Flanged End / Threaded End (BSP/NPT - Female)
