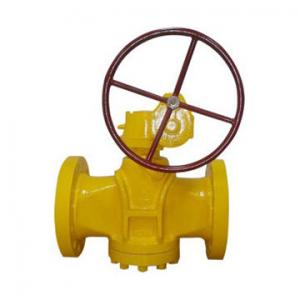

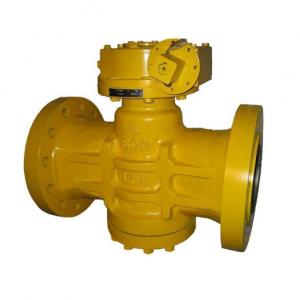

Lubricated plug valve natural gas

Lubricated plug valve natural gasLubricated plug valve natural gas
Lubricated plug valve natural gas

Lubricated plug valve natural gas Product introduction

Lubricated plug valve natural gas is also called Inverted Pressure Balance Lubricated Plug Valve,which is according to ANSI product structural features.This Lubricated Plug Valve is applicable to the cutting and connection of pipelines medium as widely used in various industries such as petroleum, chemical industry, pharmacy, chemical fertilizer, power industry etc.Lubricated plug valve natural gas is used under nominal pressure of CLASS150-1500LBS, and works at the temperature of -29~180° C.

Lubricated plug valve natural gas Feature

  1. It has logical structure, reliable seal, excellent performance and nice design.
  2. It has the structure of flip-chip balanceable pressure and light on/off operation.
  3. An sealant groove is set between valve body and seal surface, which may infuse the seal grease to increase the seal capability.
  4. The part material and flange dimension may be selected according to current operating condition and users requirement, so that meet the requirements of various engineering.


Lubricated plug valve natural gas Technical Specification

NO. PartName Material
1                Bolt                                  . ASTM A193-B7, A320-B8, A193-B8M
2 Nut ASTM A194-2H, A194-8, A194-8M
3 Cover ASTM A216-WCB ASTM A217-WC1, WC6, WC9, C5 ASTM A351-CF8, CF8M, CF3, CF3M
4 Gasket Flexible graphite+stainless steel, PTFE
5 Plug ASTM A216 WCB+N, ASTM A351-CF8, CF8M, CF3, CF3M
6 Body ASTM A216-WCB, ASTM A217-WC1, WC6, WC9, C5, ASTM A351-CF8, CF8M, CF3, CF3M
7 Stem ASTM A182-Gr.F6a, ASTM A182-F22, ASTM A182-F304, F316, F321, F304L, F316L
8 “O”ring Butyl rubber NBR
9 Packing Flexible graphite, PTFE
10 Gland ASTM A216-WCB, ASTM A217-WC1, WC6, WC9, C5, ASTM A351-CF8, CF8M, CF3, CF3M
11 Oil nozzle
12 Check valve
13 Wrench ASTM A47-32510, A216 WCB
