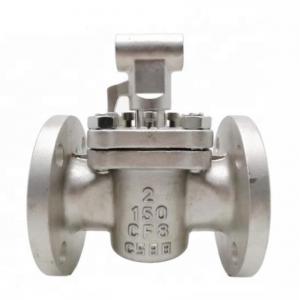

304 316 Stainless steel plug valve
304 316 Stainless steel plug valve
304 316 Stainless steel plug valve Product introduction
China stainless steel plug valve manufacturer, factory and supplier for 304 316 2205 2507 904L stainless steel lubricated and non-lubricated plug valve. 304 316 Stainless steel plug valve uses a sleeve component installed around the valve plug to maintain a continuous seal. The sleeve is used to provide the lubricity needed for the plug to rotate smoothly resulting in fast opening and closing of fluid flow. Stainless steel plug valve manufacturers also use this sleeve to help reduce frequent maintenance needed in the lubricated type of valves as well as give the valve long service life. 304 316 Stainless steel plug valve is a quarter valve,This is because they operate by turning the valve plug for a 90 degree angle to open or close.
304 316 Stainless steel plug valve operates manually or by use of actuators. 304 316 Stainless steel plug valve is designed such that the plug moves up slightly when opening fluid flow to ensure it leaves some clearance with the valve seat to avoid wear which can reduce service life of the plug. 304 316 Stainless steel plug valve has a tight shut-off and is used in various industrial applications such as waste water treatment, food processing, chemical processing, oil and gas among others.
304 316 Stainless steel plug valve specification:
Size Range : NPS ½ to NPS 24
Class Range : ANSI Class 150 – Class 600
Design Standard : ASME B16.34
End Connection : Flanged ASME B16.10
Valve Body Material : 304 316 Stainless Steel or other stainless steel
Temperature Range : -30°C to 260°C
Sleeve : PTFE / PPL or Others
Operation : Manual Lever / Pneumatic / Electrical
