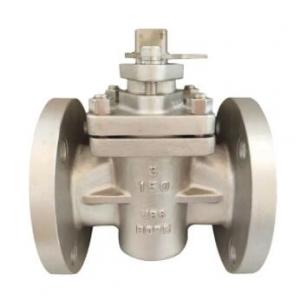

904L UB6 Stainles steel plug valve

904L UB6 Stainles steel plug valve904L UB6 Stainles steel plug valve
904L UB6 Stainles steel plug valve

904L UB6 Stainles steel plug valve Product introduction

 China 904L UB6 Stainles steel plug valve manufacturer, factory and supplier for 2 way and 3 way lubricated and non-lubricated plug valve. 904L UB6 Stainles steel plug valve uses a sleeve component installed around the valve plug to maintain a continuous seal. The sleeve is used to provide the lubricity needed for the plug to rotate smoothly resulting in fast opening and closing of fluid flow. Stainless steel plug valve manufacturers also use this sleeve to help reduce frequent maintenance needed in the lubricated type of valves as well as give the valve long service life.904L UB6 Stainles steel plug valve is a  quarter valve,This is because they operate by turning the valve plug for a 90 degree angle to open or close.

904L UB6 Stainles steel plug valve operates manually or by use of actuators. 904L UB6 Stainles steel plug valve is designed such that the plug moves up slightly when opening fluid flow to ensure it leaves some clearance with the valve seat to avoid wear which can reduce service life of the plug. 304 316 Stainless steel plug valve has a tight shut-off and is used in various industrial applications such as waste water treatment, food processing, chemical processing, oil and gas among others.

904L UB6 Stainles steel plug valve specification:
Size Range : NPS ½ to NPS 24
Class Range : ANSI Class 150 – Class 600
Design Standard : ASME B16.34
End Connection : Flanged ASME B16.10
Valve Body Material :
904L UB6 Stainles steel or other stainless steel
Temperature Range : -30°C to 180°C
Sleeve : PTFE / PPL or Others
Operation : Manual Lever / Pneumatic / Electrical

904L UB6 Stainles steel plug valve Related Products
