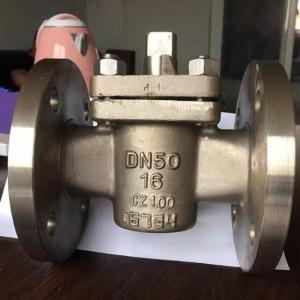

CZ100 Nickel Alloy Plug Valve

CZ100 Nickel Alloy Plug ValveCZ100 Nickel Alloy Plug Valve
CZ100 Nickel Alloy Plug Valve

CZ100 Nickel Alloy Plug Valve Product introduction

 CZ100 Nickel Alloy Plug Valve manufacturer, factory and supplier. CZ100 Nickel Alloy Plug Valve chemical composition is 95% Ni and 1% C, and there is no corresponding rolled material. When CZ100 Nickel Alloy Plug Valve is used in high temperature high concentration or anhydrous alkali solution, it has excellent corrosion resistance. CZ100 Nickel Alloy Plug Valve is commonly used in chlor-alkali production with high corrosive concentrations (including molten anhydrous caustic soda) and in applications where metal contamination products such as copper and iron cannot be present. The material code of cast nickel alloy CZ-100 valve is Ni. The suitable working temperature of CZ-100 alloy is -29 ~ 316℃.

CZ100 Nickel Alloy Plug Valve Specification

Design standard: API, ASME, EN, ISO, JIS, DIN, BS, GB

Pressure rating: CLASS 150LB~600LB, 1.0MPa~11.0MPa, JIS 10K~40K

Size range: NPS1/2” ~24”, DN15~DN600

Bore: Full bore, Reduced bore

Standard connections: flange, threaded, butt weld, socket weld

Sleeve Material: PTFE, RPTFE, TFM, GF2P, PPL, PFA
