Design standard :API 6D
Pressure scope :CLASS 150Lb~900Lb
Nominal diameter : NPS 2~36″
Body material:A105､LF2､F304､F316､F304L､F316L､F51,WCB､LCB､WCC､CF8､CF8M､CF3､CF3M､A890 4A etc
End connection :RF RTJ BW
Drive device: Lever, Gear box, Electric, Pneumatic, hydraulic device, Pneumatic-hydraulic device；

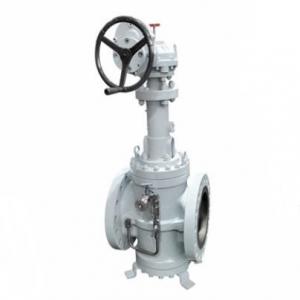

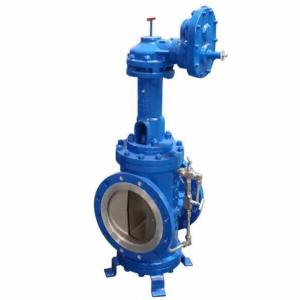

Full Bore Orbit Plug Valve Feature:

1. In the full bore orbit plug valve's opening/closing process, there is no contact between the sealing surfaces of the orbit plug valve body and the vane, so the sealing surfaces suffer neither friction nor wear, contributing to the valve's long service life and small opening/ closing torque;

2. For the full bore orbit plug valve's maintenance, there is no need to remove the valve from the pipeline but just remove its bottom cover to replace the vane pair, thus very easy for the maintenance;

3. The full bore orbit plug valve's body and plug are reduced-bore or full-bore so that the medium can flow through the valve without any flow resistance, and it's also possible to clean the pipeline with pigging to overcome the shortcomings of the reduced bore valve;

4. The cavity of the full-bore/reduced-bore general valve is plated with hard chrome and the sealing area is hard and smooth;

5. The elastic seal on the vane is made of the fluorine rubber and molded and formed in a groove of the vane surface. The fireproof metal-to-metal seal is used as the backing of the elastic seal;

6. The full bore orbit plug valve is provided with an automatic bleed device [optional] which can prevent the abnormal pressure rise of the valve cavity and check the valve's effect after the valve is completely closed;

7. The full bore orbit plug valve's opening/closing indicator is in sync with the opening/closing position and can accurately display the gear drive full-bore general valve's opening/dosing status.
