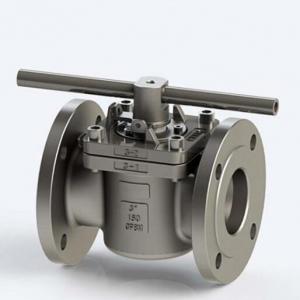

Full Bore PTFE Sleeved Plug Valve

Full Bore PTFE Sleeved Plug Valve Product introduction

　Full port plug valve, full bore PTFE sleeved plug valve manufacturer, factory and supplier. Full bore PTFE sleeved plug valveis Full round port PTFE sleeved, non-lubricated design, full bore PTFE sleeved plug valve provide cavity free solution combined with flow rates up to 5 times more than standard port configuration, no cavities, and lips that remove adhering flow media all make this valve ideal for slurries, brines, muds, and sewage. Both 2-way and 3-way valves are available. Full bore PTFE sleeved plug valve can be used to the cutting and connection of pipelines medium that are used in various industries such as petroleum, chemical industry, pharmacy, chemical fertilizer, power industry etc under nominal pressure of Class 150-Class 600, PN1.6-10 MPa, and working temperature of -29-180″C.

FULL Bore ptfe SLEEVEd PLUG VALVE PORT FEATURES

Cavity free
Large Flow (High Cv / Kv)
360° degree port lip design to ensure sleeve containment
No cold-flow, deformation, or rotation of the sleeve
Large shut-off area to assure long-lasting in-line sealing
Easy In-line adjustability
No seizing. No sticking.

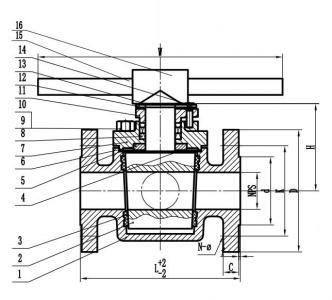

FULL bore ptfe SLEEVEd PLUG VALVE STRUCTURE

Full Bore PTFE Sleeved Plug Valve Port diagram
Full Round Port Sleeved Plug Valve

Full Bore PTFE Sleeved Plug Valve Plug Valve specification
Nominal pressure range: PN10-PN100,CLASS 150-600
Nominal size: 8'' or 1/2"--24" (DN15--DN600)
Applicable temperature: -29~ 180℃
Material: 304, 304L, 316, 316L stainless steel, etc
Pipe connection: flange connection, welding
Form: two or three way
Seal structure: soft seal
Operation mode: manual, turbine, pneumatic, hydraulic, electric (optional)
Applicable medium: petrochemical industry, chemical industry, gas, natural gas, liquefied petroleum gas and general industry.

Full Bore PTFE Sleeved Plug Valve part material

NO.	Part name	Material
NO.	Part name	A216 WCB	A351 CF8	A351 CF8M	A351 CF3	A351 CF3M
1	Body	A216 WCB	A351 CF8	A351 CF8M	A351 CF3	A351 CF3M
2	sleevd	PTFE/RPTFE
3	Plug	A182 F6a	A351 CF8	A351 CF8M	A351 CF3	A351 CF3M
4	Gasket	Flexible graphite+stainless steel PTFE
5	Adjusting gasket	A182 F6a	A182 F304	A182 F316	A182 F304L	A182 F316L
6	Cover	A216 WCB	A351 CF8	A351 CF8	A351 CF3	A351 CF3M
7	Adjusting bolt	A193 B7	A193 B8	A193 B8M	A193 B8M	A193 B8M
8~9	Bolt/nut	B7/2H	B8/8	B8M/8M	B8M/8M	B8M/8M
10	Gear	Component
