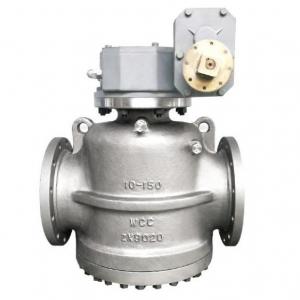

Full Port Lubricated Plug Valve Product introduction
Full port lubricated plug valve manufacturer, factory and supplier in China. Full port lubricated plug valve is pressure balanced, full round port design, which provide cavity free solution combined with flow rates up to 5 times more than standard port configuration, no cavities, and lips that remove adhering flow media.Full port lubricated plug valve can be designed according to ANSI standard, Full port self lubricated plug valve was widely applied for petroleum, chemical industry, pharmacy, chemical fertilizer, power industry etc, lubricated plug valve can be called as Pressure balance lubricated plug valve, the main application of FFull port lubricated plug valve is cutting and connectting the pipeline medium with pressure class 150 to class 900 under the temperature -40℃ to +450℃.
Full port lubricated plug valve Main Characteristics
1. There are compact structure, reliable sealing, perfect function and attractive shape for lubricated plug valve natural gas.
2. Full port lubricated plug valve is Inverted pressure balance structure, easy to be opened or closed.
3. There is a oil groove between lubricated plug valve body and sealing surface, the sealing grease can be injected into the seat through glib( oil nozzle) to increase the sealing performance.
4.For the spare parts material and flange size, Full port lubricated plug valve can be customized according to different actual working condition to meet project requirements.
Full port lubricated plug valve Technical Specification
| Design & manufacturer |
API599, API6D |
| Nominal diameter |
1/2'' ~ 16''( 15mm ~ 400mm) |
| Pressure class |
Class 150 ~ Class 900 |
| Length of face to face |
ASME B16.10 |
| Flange end |
ASME B16.5 |
| Test & inspection |
API598, API6D |
| Operation model |
Handle wheel, worm gear, pneumatic and electric actuated |
Full port lubricated plug valve Main parts material
Body : WCB, LCB,LCC,CF8,CF8M,CF3,CF3M or other material
Bonnet : WCB, LCB,LCC,CF8,CF8M,CF3,CF3M or other material
Stem : F6a,F22, F304,F316, F321
Plug : F6a,F22, F304,F316, F321
Check valve and glib ( oil nozzle): Assembly
