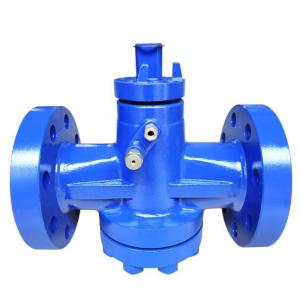

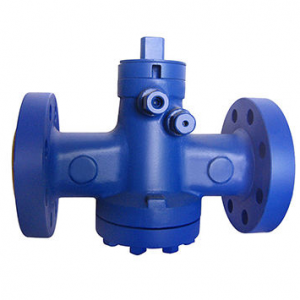

Lubricated Plug Valve Manufacturer Product introduction

　Lubricated Plug Valve manufacturer, factory and supplier in China. Lubricated Plug Valve is also called Inverted Pressure Balanced Lubricated Plug Valve. A cavity in the middle of the lubricated plug valve contains a sealant that moves toward the radial holes, creating a renewable seal between the plug and body when operated. The sealant can also act as a lubricant that reduces friction to elongate the plug valve’s lifespan.

Lubricated Plug Valve is applicable to the cutting and connection of pipelines medium as widely used in various industries such as petroleum, chemical industry, pharmacy, chemical fertilizer, power industry etc. Lubricated Plug Valve is used under nominal pressure of CLASS150-1500LBS, and works at the temperature of -29~180° C.

Lubricated Plug Valve Feature:

1. It has logical structure, reliable seal, excellent performance and nice design.
It has the structure of flip-chip balanceable pressure and light on/off operation.
2. An sealant groove is set between valve body and seal surface, which may infuse the seal grease to increase the seal capability.
3. The part material and flange dimension may be selected according to current operating condition and users requirement, so that meet the requirements of various engineering.

Lubricated Plug Valve specification:

Specifications	Details
Design Standard	API-599, API-599, ASME B16.34
Pressure/Temperature Chart	ASME B16.34
Face to face Dimension	API-6D, ASME B16.10,
Testing Standard	API 598 / BS EN 12266-1
Flange Details	ASME B16.5 UP TO 24″ DIN / BS / IS / JIS
Butt Weld Ends	ASME B16.25
Socket Weld Ends	ASME B16.11
Screwed Ends	ASME B16.11
Size Range	2″ – 24″ (DN50 – DN600)
ASME Class	Class 150 & 300
Materials	WCB / LCB / LCC / CF8M / CF8 /CF3M / 4A / 6A
Trims	F6a / F316 / F304 / F316L / F321 / F51 / F55 / Inconel
Sleeve	PTFE, RPTFE
Ends	Flange Ends, Butt-weld Ends, Screwed Ends, Socket Weld Ends.
