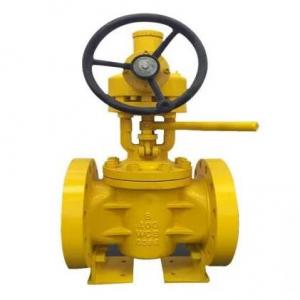

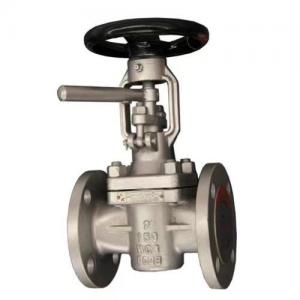

Metal Seated Lift Plug Valve

Metal Seated Lift Plug ValveMetal Seated Lift Plug Valve
Metal Seated Lift Plug Valve

Metal Seated Lift Plug Valve Product introduction

 China Metal Seated Lift Plug Valve manufacturer, factory and supplier. Metal Seated Lift Plug Valve is applicable to the cutting and connection of pipelines medium that are used in various industries such as petroleum, chemical industry, pharmacy, chemical fertilizer, power industry etc under nominal pressure of Class 150-1500,and working temperature of -29-550℃.

Metal Seated Lift Plug Valve is a new type of plug valve, which uses the first lift after the opening and closing valve operation mode, greatly reducing the opening and closing torque of the plug valve, and different from the traditional plug valve using rectangular reduced diameter channel, the valve usually uses circular channel, so that the fluid resistance of the plug valve is greatly reduced, Metal Seated Lift Plug Valve compared with ball valve and gate valve, which can be used in high temperature, high pressure conditions, greatly expand the use of the plug valve range.

Metal Seated Lift Plug Valve Feature:

1. Metal Seated Lift Plug Valve opening and closing first lift the cock, so that the cock and the seat sealing surface is separated, and then 90° rotation cock, so that the valve open or close. Because the valve in the opening and closing process of the plug and the valve seat is separated, so the valve opening and closing is very easy, and the sealing surface in the opening or closing process is not easy to scratch, the service life of the valve is long.

2. Metal Seated Lift Plug Valve whether in the open state or closed state, the sealing surface is protected from media erosion, tight and reliable seal.

3. The ordinary plug valve uses rectangular flow channel, and the flow channel area is reduced, there is a large fluid resistance loss, and the metal hard seal lifting plug valve uses the same circular channel with the cross-sectional area of the pipeline, the fluid resistance is minimal.

4. Metal Seated Lift Plug Valve compact structure, small size, compared with the gate valve, the valve height size is greatly reduced, compared with the globe valve, fluid resistance is greatly reduced.

5. Compared with the ordinary plug valve, the metal hard seal lifting plug valve is suitable for a larger range of pressure and temperature.

6.Metal Seated Lift Plug Valve on both sides of the seat sealing surface can be sealed, the installation and use of the valve is not limited by the flow direction of the medium.

7. The sealing surface of the seat is raised, easy to clean the sealing surface, the sealing surface is not easy to accumulate crystalline medium or solid particles.

8. Metal Seated Lift Plug Valve is closed, the hand wheel and stem can be used to pressure the sealing surface of the valve seat, by increasing the specific sealing pressure, can make the plug valve has better sealing performance.


Metal Seated Lift Plug Valve Material:
No. Part name Material
1                         . Body                                      . ASTM A216-WCB, ASTM A217-WC1, WC6, WC9, C5, ASTM A351-CF8, CF8M, CF3, CF3M
2 Plug ASTM A216 WCB+N, ASTM A351-CF8, CF8M, CF3, CF3M
3 Gasket Flexible graphite+stainless steel, PTFE
4 Cover ASTM A216-WCB, ASTM A217-WC1, WC6, WC9, C5, ASTM A351-CF8, CF8M, CF3, CF3M
5 Bolt ASTM A193-B7, A320-B8A193-B8M
6 Nut ASTM A194-2H, A194-8, A194-8M
7 Packing Flexible graphite, PTFE
8 Gland ASTM A216-WCB, ASTM A217-WC1, WC6, WC9, C5, ASTM A315-CF8, CF8M, CF3, CF3M
9 Wrench ASTM A216-WCB, ASTM A351-CF8, CF8M, CF3, CF3M
10 Yoke nut Copper alloy ZQA19-4
11 Handwheel ASTM A536 Gr.60-40-18, ASTM A216-WCB
