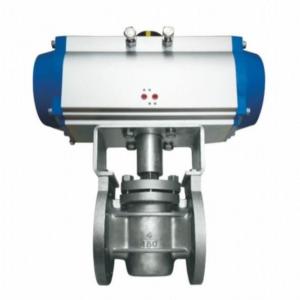

Pneumatic actuated plug valve

Pneumatic actuated plug valvePneumatic actuated plug valve
Pneumatic actuated plug valve

Pneumatic actuated plug valve Product introduction

 Pneumatic actuated plug valve manufacturer, factory and supplier, mainly produce pneumatic actuated lubricated plug valve, Pneumatic actuated sleeved plug valve, pneumatic actuated eccentric plug valve, pneumatic actuated PTFE PFA lined plug valve, 2 way,3 way,4 way pneumatic actuated plug valve, lift jacketed pneumatic actuated plug valve or other pneumatic actuted plug valves.

Pneumatic actuated
plug valve is componsed of different structure plug valves and pneumatic actuator with double acting or sigle acting, pneumatic actuated plug valve is a quick switch through valve, due to the movement between the rotary sealing surface with wiping effect, and in full open can completely prevent contact with the flow of media. Pneumatic actuated plug valve can usually also be used with suspension of the medium.

Another important feature of pneumatic actuated plug valve is that it is easy to adapt to a multi-channel structure, pneumatic actuated plug valve can have two, three, or even four different flow channels.This simplifies the design of the piping system and reduces the number of valves and connections required in the equipment. Pneumatic actuated plug valve is widely used in industries such as petroleum, chemical industry, pharmacy, chemical fertilizer, power and industry.


Pneumatic actuated plug valve specification:
Construction:2-Way / 3-Way /4 Way
Type: PTFE (Teflon) Sleeved / Teflon Fully Lined Lubricated / Pressure Balanced Plug Valve
Standard: API-599 / BD-5353 / API-6D or Others
Size: DN15-DN600
Port: Full-Bore / Reduced Bore
Pressure Class: PN10-PN420,CLASS 150-2500 according to structure
End: Flanged / SW / BW / Screwed (BSP/NPT)
Material: WCB-CF8-CF8M-CF3-CF3M-LCB-WC1-WC6-CN7M-CD4MCu-HAST-B/HAST-C
Speciality: Fire-Safe, Extended Stem, Jacketed or Others.
Pneumatic Actuator: Quarter-Turn Pneumatic Actuator
Actuator structure: Rack & Pinion / Scotch & Yoke
Duty: On-Off
Accessories: Solenoid Valves, Limit / Proximity Switch Box, Air Filter Regulator, Manual Over-ride, Electro-Pneumatic Positioner, I-P Converter
