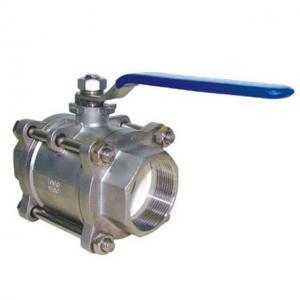

Threaded End Ceramic Lined Ball Valve

Threaded End Ceramic Lined Ball Valve Product introduction

　Threaded End Ceramic Lined Ball Valve manufacturer, factory and supplier. Threaded End Ceramic Lined Ball Valve is 3PC structure, modified ceramic valve core, improve the ordinary valve due to soft sealing structure, the valve is easy to wear and torque heavy shortcomings. Threaded End Ceramic Lined Ball Valve is light, if you need to install the actuator can be installed small models. It saves costs. More importantly, Threaded End Ceramic Lined Ball Valve is durable and economic, reducing a lot of unnecessary maintenance and costs of the pipeline. It is also a witness of quality and environmental protection. Small shape, economical and practical.

Threaded End Ceramic Lined Ball Valve specification
Nominal diameter: DN15~50mm(1/2"~2")
Nominal pressure: PN1.0~4.0MPa(150~600Lb)
Applicable temperature: ≤ 300℃
Materia:carbon steel,stainless steel,etc
Medium: polycrystalline silicon powder, pulverized coal, powdery granule, gesso fluid,sulfuric acid, hydrochloric acid etc.
Application range: pipeline system on-off devices in the fields of power, oil, chemical engineering etc.

Threaded End Ceramic Lined Ball Valve ceramic material performance
Hardness and Wear Resistance
Abrasion from entrained solids in liquid flows, high viscosity slurries, pneumatic conveying, and many other demanding services can drastically reduce the life of most traditional valve styles. Lined valves utilizing ceramic materials that exhibit hardness values substantially higher than most metals can maximize the life of the valve.

Corrosion Resistance
Compared to other wear resistant materials, ceramic materials are much more corrosion resistant and can be used in a broad range of corrosive applications. Ceramics are completely resistant to most solvents, aqueous brines, and acids, even at relatively high temperatures.

Thermal Shock Resistance
Ceramic components maintain their shape and strength as well as physical characteristics up to extremely high temperatures. However, rapid changes in temperature (thermal shock) can prove challenging for ceramics.

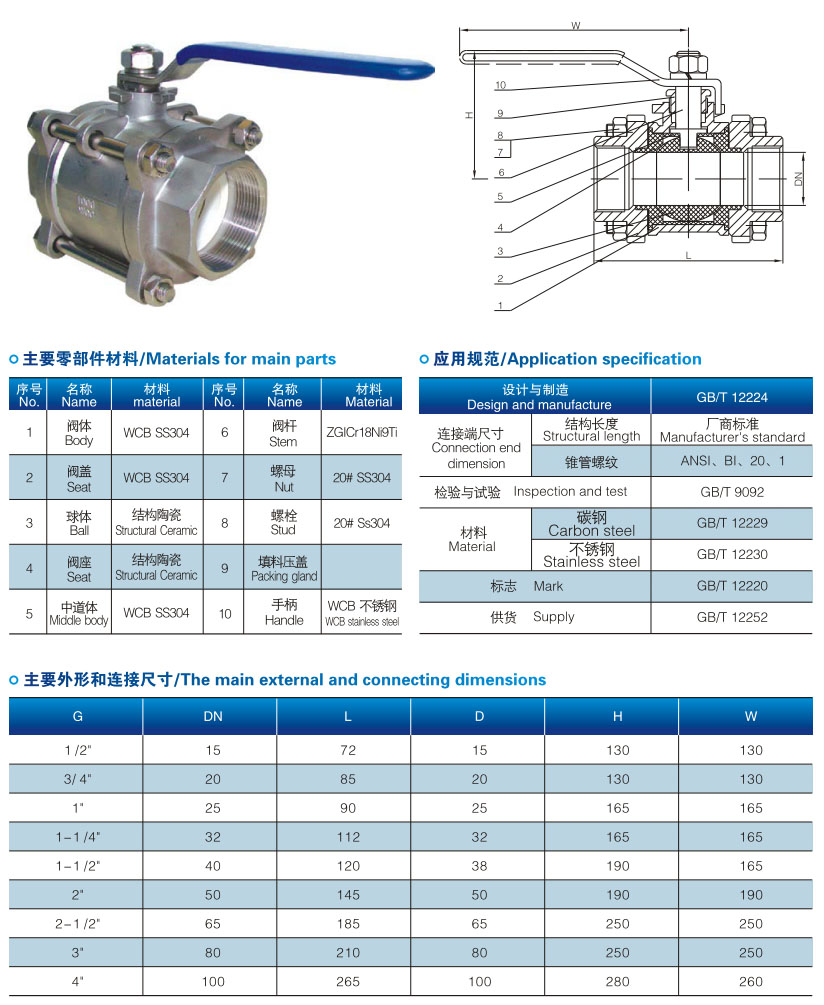

Threaded End Ceramic Lined Ball Valve Technical parameters
