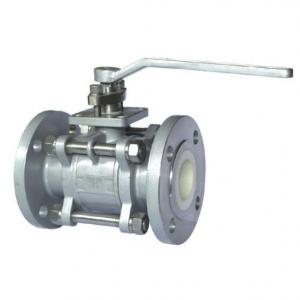

Q41TC Ceramic Lined Ball Valve

Q41TC Ceramic Lined Ball Valve Product introduction

　Q41TC Ceramic Lined Ball Valve manufacturer, factory and supplier in China. The parts of Q41TC Ceramic Lined Ball Valve in contact with the medium are structural ceramic materials, which have high chemical stability and hardness (Rockwell hardness HRC90), second only to diamond. Therefore, Q41TC Ceramic Lined Ball Valve has high wear resistance, corrosion resistance, erosion resistance, and good heat insulation, small thermal expansion. Q41TC Ceramic Lined Ball Valve is mainly used in electric power, petroleum, chemical industry, metallurgy, mining, sewage treatment and other industrial fields, especially in the face of high wear, strong corrosion, high temperature, high pressure and other harsh conditions.

The ball of Q41TC Ceramic Lined Ball Valve is made of advanced grinding equipment and technology. The ball has high roundness precision and good surface quality. After grinding with the valve seat, it has good sealing performance by using the self-lubricity of structural ceramics. Completely changed the metal hard seal ball valve leakage, torque, sealing surface is not corrosion resistant shortcomings. Q41TC Ceramic Lined Ball Valve seat and ball have good wear resistance and long service life, which is 2-4 times that of titanium alloy valve and Monel valve. Q41TC Ceramic Lined Ball Valve is a three-piece structure, which can be manufactured according to GB, JIS, API and other standard data.

Q41TC Ceramic Lined Ball Valve specification
Nominal diameter: DN15~600mm(1/2"~24")
Nominal pressure: PN1.0~4.0MPa(150~600Lb)
Applicable temperature: ≤ 300℃
Materia:carbon steel,stainless steel,etc
Medium: polycrystalline silicon powder, pulverized coal, powdery granule, gesso fluid,sulfuric acid, hydrochloric acid etc.
Application range: pipeline system on-off devices in the fields of power, oil, chemical engineering etc.

Q41TC Ceramic Lined Ball Valve ceramic material performance
Hardness and Wear Resistance
Abrasion from entrained solids in liquid flows, high viscosity slurries, pneumatic conveying, and many other demanding services can drastically reduce the life of most traditional valve styles. Lined valves utilizing ceramic materials that exhibit hardness values substantially higher than most metals can maximize the life of the valve.

Corrosion Resistance
Compared to other wear resistant materials, ceramic materials are much more corrosion resistant and can be used in a broad range of corrosive applications. Ceramics are completely resistant to most solvents, aqueous brines, and acids, even at relatively high temperatures.

Thermal Shock Resistance
Ceramic components maintain their shape and strength as well as physical characteristics up to extremely high temperatures. However, rapid changes in temperature (thermal shock) can prove challenging for ceramics.

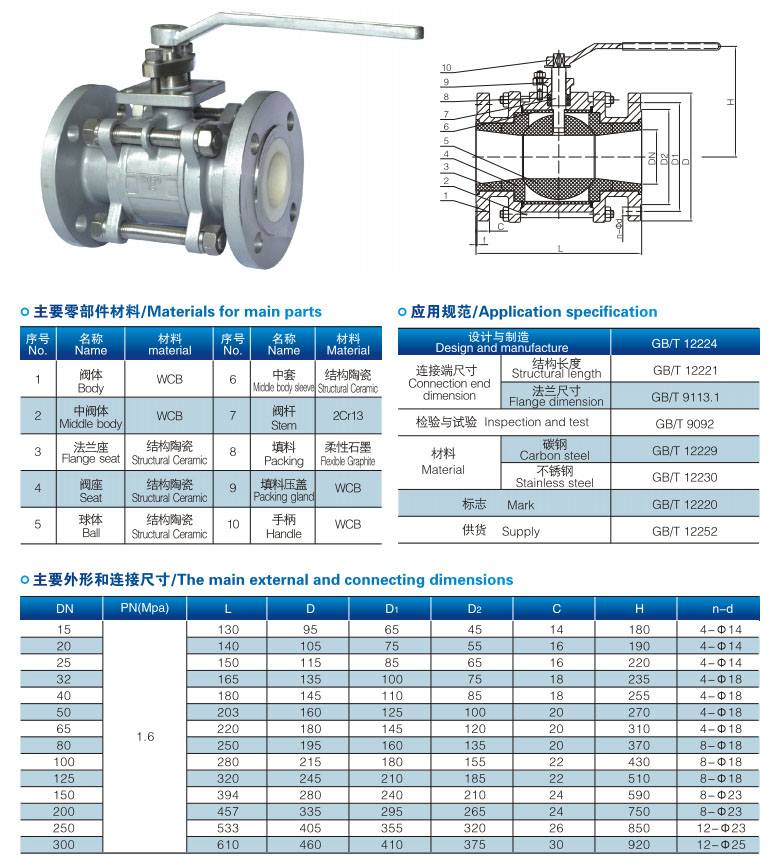

Q41TC Ceramic Lined Ball Valve Technical parameters

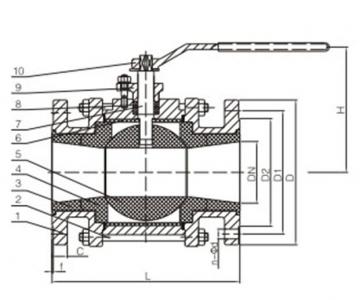

Q41TC Ceramic Lined Ball Valve dimension
