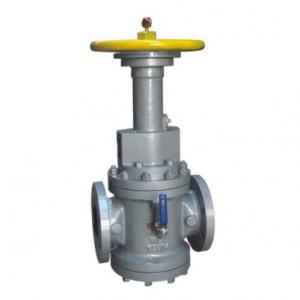

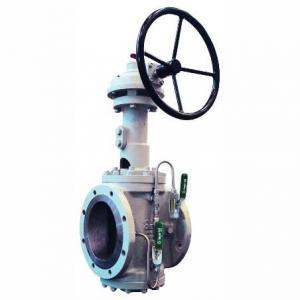

API 6D Twin Seal Plug Valve

API 6D Twin Seal Plug ValveAPI 6D Twin Seal Plug Valve
API 6D Twin Seal Plug Valve

API 6D Twin Seal Plug Valve Product introduction

 API 6D Twin Seal Plug Valve manufacturer, factory, company and supplier in China. API 6D Twin Seal Plug Valve provides online-verifiable bubble tight sealing and is a safe and reliable replacement to the conventional two-valve system. There is no contact between the sealing surfaces of the API 6D Twin Seal Plug Valve body and the vane in the opening and closing process, so the sealing surfaces suffer neither friction nor wear, contributing to the valve's long service life and small opening/ closing torque.

API 6D Twin Seal Plug Valve Specification:

Design standard :API 6D
Pressure scope :CLASS 150Lb~2500Lb
Nominal diameter : NPS 2~36″
Body material:A105、LF2、F304、F316、F304L、F316L、F51,WCB、LCB、WCC、CF8、CF8M、CF3、CF3M、A890 4A etc
End connection :RF RTJ BW
Drive device: Lever, Gear box, Electric, Pneumatic, hydraulic device, Pneumatic-hydraulic device;



API 6D Twin Seal Plug Valve Feature:

1. In the API 6D Twin Seal Plug Valve's opening/closing process, there is no contact between the sealing surfaces of the valve body and the vane, so the sealing surfaces suffer neither friction nor wear, contributing to the valve's long service life and small opening/ closing torque;

2. For the API 6D Twin Seal Plug Valve's maintenance, there is no need to remove the valve from the pipeline but just remove its bottom cover to replace the vane pair, thus very easy for the maintenance;

3. The API 6D Twin Seal Plug Valve's body and plug are full-bore so that the medium can flow through the valve without any flow resistance.and it's also possible to clean the pipeline to overcome the shortcomings of the reduced port valve;

4. The API 6D Twin Seal Plug Valve's cavity is plated with hard chrome and the sealing area is hard and smooth;

5. The elastic seal on the vane is made of the fluorine rubber and molded and formed in a groove of the vane surface.The fireproof metal-to-metal seal is used as the backing of the elastic seal;

6. The API 6D Twin Seal Plug Valve is provided with an automatic bleed device(optional) which can prevent the abnormal pressure rise of the valve cavity and check the valve's effect after the valve is completely closed;

7. The API 6D Twin Seal Plug Valve's opening/closing indicator is in sync with the opening/closing position and can accurately display the valve's opening/closing status.
